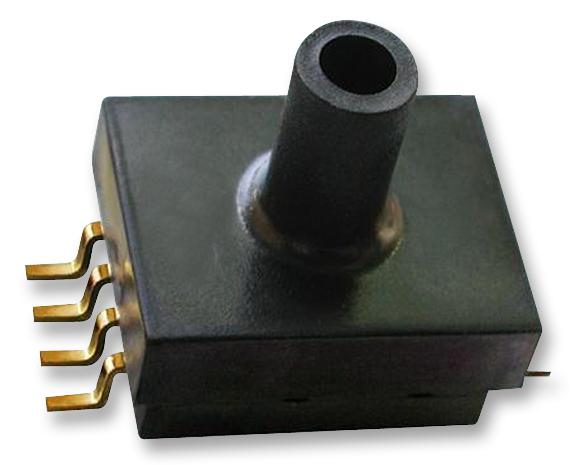

NXP MPXH6300AC6T1 Pressure Sensor
The MPXH6300A series pressure sensor by Freescale offers high accuracy across a broad temperature range of -40 °C to +125 °C, making it ideal for microprocessor-based systems like fuel-injected engines and industrial controls. This monolithic, silicon piezoresistive transducer features on-chip circuitry, temperature compensation, and a small, durable surface-mount package, suited for remote sensing and liquefied natural gas applications. It provides an analog output signal proportional to applied pressure, with full calibration and reliability for demanding industrial environments.
NXP MPXH6300AC6T1 Pressure Sensor Specifications:
- Pressure range: 20 to 300 kPa
- Supply voltage: 4.74 to 5.46 V
- Output voltage: 0.306 to 4.977 V at full scale
- Temperature compensation: -40 °C to +125 °C
- Maximum pressure: 1200 KPa
- Storage temperature: -40 to +125 °C
- Operating temperature: -40 to +125 °C
- Output source current: 5 mA max
- Output sink current: -0.5 mA
- Response time: 1 ms
- Accuracy: ±1.5% over 0 °C to 85 °C
- Package: Super small outline surface-mount SOIC
- Dimensions: Refer to datasheet mechanical outline at 98ARH99089A
- RoHS compliant
Buy the Freescale Series MPXH6300A Absolute Pressure Sensor: MPXH6300AC6T1
Purchase the Freescale MPXH6300AC6T1 pressure sensor online today and benefit from its high accuracy, wide temperature compensation, and reliable performance. Designed for microcontroller integration, this small surface-mount device offers excellent stability for demanding environments like fuel injection systems, industrial controls, and remote sensing. Its ready calibration, robust construction, and compact size make it ideal for applications requiring precise pressure measurement and long-term durability, ensuring seamless integration into advanced automated systems.
Get Freescale MPXH6300AC6T1 today—built for precision and long-lasting durability in industrial and automotive pressure sensing applications.
Frequently Asked Questions
Where can I buy NXP MPXH6300AC6T1?
You can click on the BUY or RFQ button to purchase MPXH6300AC6T1 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MPXH6300AC6T1?
You can download the MPXH6300AC6T1 datasheet or visit the NXP website for support.
Who is the manufacturer of MPXH6300AC6T1?
NXP
