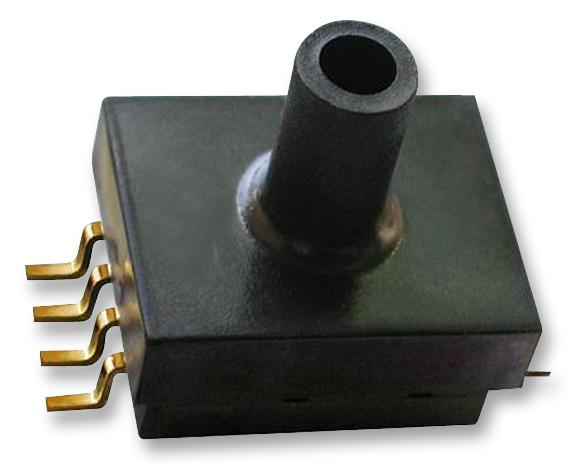

NXP MPXH6400AC6U pressure sensor
The MPXH6400A series is an integrated small form factor pressure sensor offering high accuracy measurements from 20 to 400 kPa absolute pressure. Featuring on-chip temperature compensation, bipolar op amp circuitry, and thin film resistors, it ensures reliable performance across -40°C to +125°C. Its durable thermoplastic surface mount package makes it ideal for microcontroller-based systems, vehicle engines, and gas detection applications, providing an accurate analog output proportional to applied pressure, with improved high-temperature accuracy and calibration for stable performance.
NXP MPXH6400AC6U pressure sensor Specifications:
- Pressure range: 20 to 400 kPa
- Maximum pressure: 1600 KPa
- Supply voltage: 4.64 to 5.36 V
- Output voltage: 0.2 to 4.866 V
- Supply current: 6.0 to 10 mAdc
- Temperature compensation: -40°C to +125°C
- Operating temperature: -40°C to +125°C
- Storage temperature: -40°C to +125°C
- Maximum pressure: 1600 KPa
- Pressure error: ±5.5 KPa from 20 to 400 KPa
- Response time: 1.0 ms
- Full-scale span: approximately 4.6 V at 5V supply
- Analog output: proportional to pressure
- Package: Small outline surface mount (case 98ARH99066A)
- RoHS compliant, durable thermoplastic material
- Media compatibility: dry air recommended for optimal performance
Buy the Freescale Series MPXH6400A Absolute Pressure Sensor: MPXH6400AC6U
Purchase the Freescale pressure sensor online today to ensure your system's precise pressure measurement and environmental reliability. The MPXH6400AC6U offers high accuracy across a broad pressure range from 20 to 400 kPa, integrated temperature compensation, and a robust surface mount package suitable for microcontroller-based applications. Its quick response time and stable calibration make it ideal for use in engine management, gas detection, and industrial controls. Buy now for dependable performance and seamless integration into your design or project.
Buy Freescale MPXH6400AC6U now and experience unmatched reliability and performance in high-accuracy pressure sensing for industrial and automotive systems.
