NXP TEA19362T1J Power Supply Controller IC
The TEA19362T is a highly efficient GreenChip controller IC designed for switched mode power supplies, particularly flyback topologies. It supports fixed-frequency operation, burst mode at low power, and Quasi-Resonant modes for optimized efficiency across diverse power levels up to 75W. Features include integrated overload, overvoltage, undervoltage, and thermal protections, with precise start-up and regulation controls. Its compact SO10 package and wide input/output voltage range make it suitable for mobile chargers, multimedia device charging, and other high-efficiency power conversion applications, ensuring reliable, low-noise operation and minimal external components.
NXP TEA19362T1J Power Supply Controller IC Specifications:
- Supports output voltage range from 3 V to 20 V
- Supports fixed frequency mode at approx. 71-74 kHz
- Operating temperature range: -25°C to +140°C
- Supply voltage: 9.9 V to 16.4 V on VCCL, 13.4 V to 16.4 V on VCCH
- Peak current sense voltage: 130-160 mV
- Protection features include overload, overvoltage, overtemperature, and safe restart
- Burst mode and Quasi-Resonant operation for high efficiency
- Driver sourcing current: 300 mA, sinking current: 750 mA
- Package: SO10 with 10 leads
- Start-up current: approx. 0.8 mA at HV pin
- Power dissipation limit: 1 W
- Thermal resistance junction-to-ambient: 148 K/W
- Undervoltage lockout threshold: approx. 9.9 V
- Maximum on-time: 55 μs
- Reduced no-load power consumption at approx. 20 mW at 5 V output
- Oscillator frequency: ~71 kHz

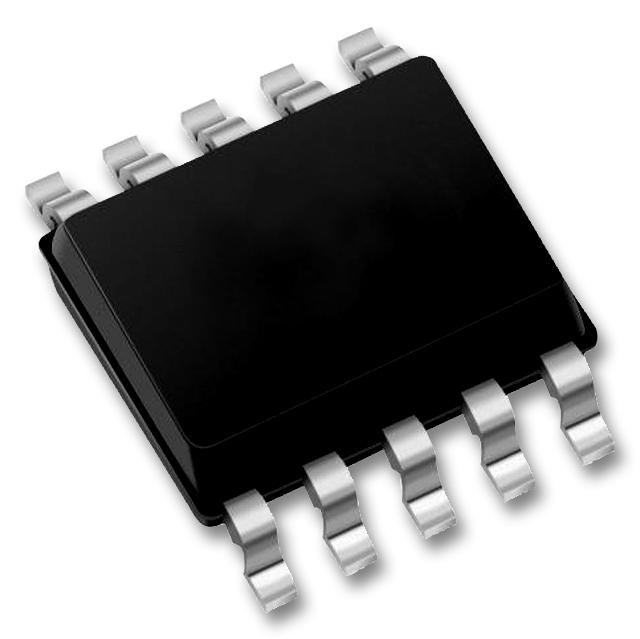

Buy the NXP TEA19362T – Reliable GreenChip Controller for Industrial Applications
Purchase the NXP TEA19362T online today—engineered for high efficiency and reliability in switch-mode power supplies. Featuring fixed frequency operation, burst mode for low power consumption, and comprehensive protections including overload, overvoltage, and thermal safeguards, this controller IC is ideal for mobile chargers, multimedia devices, and industrial power systems. Its compact SO10 package and wide input/output voltage range facilitate easy integration into various applications. Ensure your power systems operate smoothly, quietly, and efficiently with the TEA19362T—order now for fast delivery and expert support.
Get NXP TEA19362T today—built for precision, high efficiency, and reliable power management in industrial and consumer electronics.
Frequently Asked Questions
Where can I buy NXP TEA19362T1J?
You can click on the BUY or RFQ button to purchase TEA19362T1J from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part TEA19362T1J?
You can download the TEA19362T1J datasheet or visit the NXP website for support.
Who is the manufacturer of TEA19362T1J?
NXP
