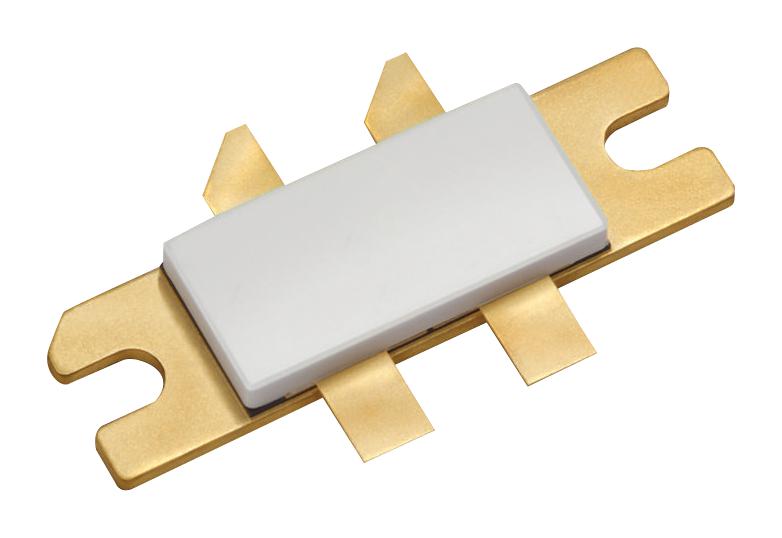

NXP MRFX600HR5 Broadband RF Power Transistor
The MRFX600H is a high-power RF LDMOS transistor designed for broadband applications ranging from 1.8 to 400 MHz. It offers 600 W CW output power with 65 V operation, high breakdown voltage, and excellent ruggedness supporting high VSWR conditions. Its features include integrated ESD protection, an output impedance fitting 4:1 transformers, and suitability for linear and RF amplification applications in industrial, medical, broadcast, aerospace, and mobile radio sectors. The device is qualified for long-term supply, ensuring durability and reliability in demanding environments.
NXP MRFX600HR5 Broadband RF Power Transistor Specifications:
- Frequency Range: 1.8 to 400 MHz
- Maximum Output Power: 600 W CW
- Drain-Source Voltage: 179 Vdc
- Gate-Source Voltage: -6.0 to +10 V
- Operating Temperature Range: -40°C to +150°C
- Case Operating Temperature: -40°C to +150°C
- Junction Temperature Range: -40°C to +225°C
- Total Device Dissipation: 1333 W at 25°C
- Thermal Resistance, Junction to Case: 0.15 °C/W
- ESD Protection: Human Body Model - 2500 V, Charge Device Model - 1000 V
- Input Capacitance: 299 pF
- Output Capacitance: 84 pF
- Reverse Transfer Capacitance: 14 pF
- Load Mismatch Tolerance: VSWR > 65:1 at 230 MHz with no device degradation
- Package Types: MRFX600H, MRFX600HS, MRFX600GS, with tape and reel options
Buy the NXP Series Broadband RF Power Transistor: MRFX600H
Purchase the NXP Broadband RF Power Transistor MRFX600H online today to ensure robust and reliable high-power amplification across a wide frequency range. This device delivers 600 W CW output power with high ruggedness, supporting demanding applications such as industrial heating, medical RF treatments, broadcast transmitters, aerospace communications, and mobile radio systems. Its integrated ESD protection, high breakdown voltage, and long-term supply assurance make it an excellent choice for engineers seeking dependable performance. Get your device now and upgrade your RF systems with industry-leading quality and durability.
Order your NXP Series Broadband RF Power Transistor MRFX600H today and enhance your industrial, broadcast, or aerospace RF systems with proven durability and high performance.
Frequently Asked Questions
Where can I buy NXP MRFX600HR5?
You can click on the BUY or RFQ button to purchase MRFX600HR5 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MRFX600HR5?
You can download the MRFX600HR5 datasheet or visit the NXP website for support.
Who is the manufacturer of MRFX600HR5?
NXP
