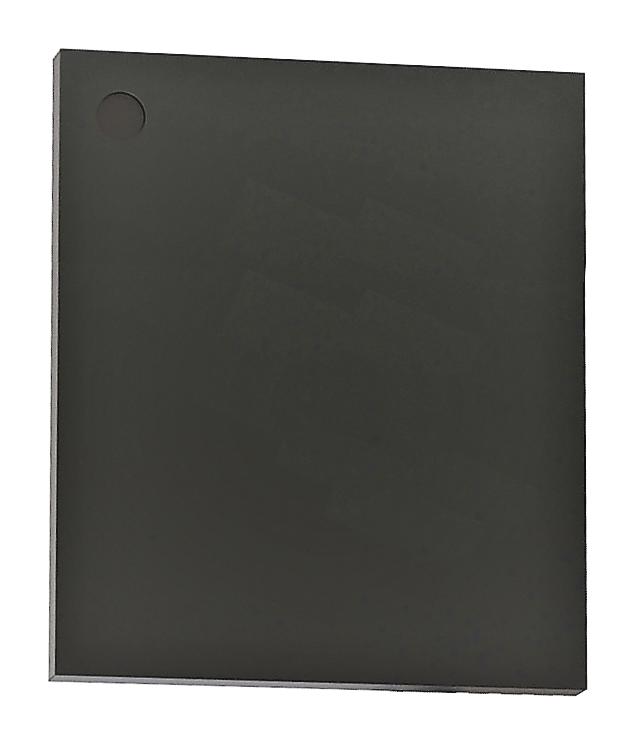

NXP NTP53321G0JHKZ NFC Interface IC
The product is a highly integrated NFC interface IC optimized for sensor-driven applications. Operating at 13.56 MHz and NFC Forum Type 5 compliant, it supports energy harvesting, secure communication with AES mutual authentication, and configurable memory areas. It offers long-range NFC read/write (>60 cm), a 2048-byte user EEPROM, 256-byte SRAM, scalable security features, and multiple modes like pass-through, secure, and privacy modes. It is suitable for low power, low BOM, and IoT sensor applications, providing robust security, automatic calibration, and easy integration with NFC-enabled devices.
NXP NTP53321G0JHKZ NFC Interface IC Specifications:
- Operating Frequency: 13.56 MHz
- Memory: 2048 bytes (user EEPROM), 256 bytes (SRAM)
- Communication Range: Up to 60 cm with industrial readers
- Energy Harvesting: Yes, configurable output voltage up to 3 V, power up to 30 mW
- Security: AES mutual authentication, 64-bit ECC signature, password protection, multiple access levels
- Supported Protocols: ISO/IEC 15693, NFC Forum Type 5
- Supply Voltage: 1.62 V to 5.5 V
- Write Endurance: 1,000,000 cycles
- Data Retention: 40 years
- Environmental: -40°C to +105°C operational temperature range
- Physical Package Options: XQFN16, TSSOP16, SO8
- Pin Count: 8 or 16 pins depending on package
- Supported Modes: NFC, I2C, pass-through, energy harvesting, privacy mode
- Secure Modes: AES, plain password, lockable configuration and memory areas
- Device Lock: Permanent lock options for configuration and memory sections
Buy the NXP Series NFCIC: Energy Harvesting NFC Tag with AES Authentication: NTP53321G0JHKZ
Order the NTP53321G0JHKZ NFC interface IC online today to leverage advanced energy harvesting, long-range NFC capabilities, AES authentication, and configurable secure memory. Perfect for low-power IoT, sensor applications, and secure contactless communication projects. Designed for easy integration into diverse systems, ensuring reliable, scalable security, and compliance with NFC Forum standards. Enhance your product’s wireless capabilities with this robust, future-proof NFC solution—order now for quick delivery and technical support.
Get NXP NFCIC energy harvesting device today—built for secure and long-range NFC communication with sensor integration.
Frequently Asked Questions
Where can I buy NXP NTP53321G0JHKZ?
You can click on the BUY or RFQ button to purchase NTP53321G0JHKZ from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part NTP53321G0JHKZ?
You can download the NTP53321G0JHKZ datasheet or visit the NXP website for support.
Who is the manufacturer of NTP53321G0JHKZ?
NXP
