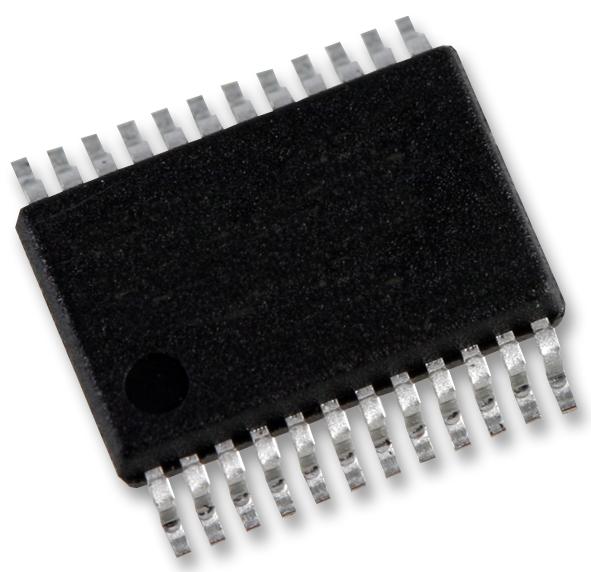

NXP PCF8575CTS1118 16-bit I/O expander
The PCF8575C is a 16-bit remote I/O expander designed for the I2C-bus, featuring quasi-bidirectional ports for flexible input/output functions. It operates from 4.5 to 5.5 V supply voltage, with low standby current, and includes latched outputs capable of driving LEDs with high current. The device utilizes an open-drain interrupt line for system alerts, and supports up to eight devices via three hardware address pins. Its compact SSOP24 package makes it suitable for various microcontroller applications requiring remote I/O expansion with efficient power consumption and reliable communication.
NXP PCF8575CTS1118 16-bit I/O expander Specifications:
- Operating voltage: 4.5 to 5.5 V
- Supply current (operating): up to 200 mA
- Standby current: max 10 μA
- Input voltage range: Vgg-0.5 to Vpp+0.5 V
- Output current per port: up to 25 mA
- Power dissipation: max 400 mW
- Package: SSOP24, body width 5.3 mm
- I2C-bus speed: 400 kbits/s (Fast mode)
- Pin configuration: 24 leads, including address pins and interrupt output
- Timing: maximum clock frequency 400 kHz, start/stop setup time 0.6 μs
- Logic high input voltage: 0.8 Vpp to Vpp+0.8 V
- Logic low input voltage: -0.8 V to 0.3 Vpp
- Built-in reset circuit: power-on reset with Vop < 1.8 V, initializes all I/Os to high-Z (3-state)
- Open-drain interrupt output for alert signaling
- Supports multiple devices on the same bus with unique addresses
- Application in microcontroller systems for remote I/O expansion, LED control, and system monitoring
