NXP NTS0104BQQ100X Level Translator
The NTS0104-BQ100 is a high-performance dual supply translating transceiver with auto direction sensing, designed for bidirectional voltage level translation. It features open-drain outputs for compatibility with open-drain or push-pull drivers, supporting two voltage domains from 1.65 V to 3.6 V on side A and 2.3 V to 5.5 V on side B. Suitable for automotive, I2C, SMBus, UART, and GPIO applications, it includes partial power-down circuitry to prevent backflow current during power-off states, and is qualified to the AEC-Q100 Grade 1 standard, operational from -40°C to +125°C.
NXP NTS0104BQQ100X Level Translator Specifications:
- Supply Voltage A: 1.65 V to 3.6 V
- Supply Voltage B: 2.3 V to 5.5 V
- Supports data rates up to 50 Mbps
- Input voltage range: -0.5 V to 6.5 V
- Output voltage: -0.5 V to Vcc + 0.5 V
- ESD protection: exceeding 2500 V (MIL-STD-883, HBM)
- Temperature range: -40°C to +125°C
- Power dissipation: maximum 250 mW
- Package options: TSSOP14, DHVQFN14, WLCSP12
- Built-in partial power-down circuitry to prevent backflow current
- Supports open-drain interface for SMBus, I2C, UART, and GPIO
- Qualified to automotive standards: AEC-Q100 Grade 1

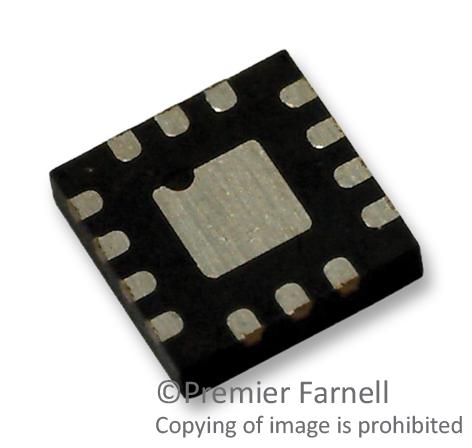

Buy the Buy NXP NTS0104-BQ100 Level Translator Part Number NTS0104BQ-Q100 Online
Order the NXP NTS0104-BQ100 level translator online today to enhance your automotive and digital systems with reliable bidirectional voltage translation. This device supports dual voltage domains from 1.65 V to 3.6 V and 2.3 V to 5.5 V, includes open-drain outputs, and features partial power-down circuitry to prevent backflow currents during power-off states. Designed for I2C, SMBus, UART, and GPIO applications, it surpasses industry standards with automotive qualification, ensuring durability from -40°C to +125°C. Purchase now for dependable performance in critical electronic systems.
Buy NXP NTS0104-BQ100 now and experience unmatched reliability and performance in automotive voltage level translation applications.
Frequently Asked Questions
Where can I buy NXP NTS0104BQQ100X?
You can click on the BUY or RFQ button to purchase NTS0104BQQ100X from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part NTS0104BQQ100X?
You can download the NTS0104BQQ100X datasheet or visit the NXP website for support.
Who is the manufacturer of NTS0104BQQ100X?
NXP
