NXP TWRMCF51JG Tower Controller Module

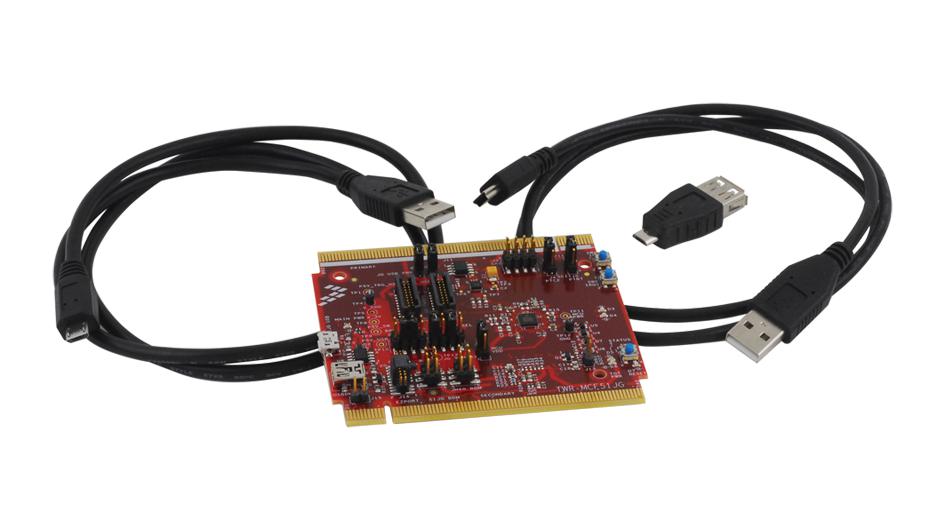

The TWR-MCF51JG is a versatile Tower Controller Module based on the ColdFire+ 32-bit microcontroller, designed for evaluation and development within the Freescale Tower System. It features an onboard debug circuit, dual role USB interface, a 3-axis accelerometer, and a general purpose TWRPI socket for expansion. The module supports stand-alone operation or integration into the Tower System, offering flexible power options, GPIOs, UART, SPI, I2C, and extensive I/O connectivity. Ideal for embedded developers needing a compact, expandable platform for sensor, communications, and control applications.
NXP TWRMCF51JG Tower Controller Module Specifications:
- Microcontroller: ColdFire+ 32-bit core, MCF51JG256, 256 KB flash, 64 KB RAM
- Operating Voltage: 1.85V to 3.6V
- Maximum Core Speed: 50 MHz
- Package: 44-pin MAPLGA, 5mm x 5mm
- On-board Debug: OSBDM circuit with USB interface
- USB: Full-Speed/Low-Speed OTG/Host/Device support via Micro-AB connector
- Accelerometer: MMA8451Q 3-axis digital, I2C interface
- GPIO: Multiple configurable signals, including LEDs and pushbuttons
- Power: Selectable via external or internal regulators, with jumpers for configuration
- Connectors: Dual 2x80 signal connectors, general purpose TWRPI socket
- Clock Sources: 8MHz XTAL, 32.768 KHz oscillator
- Expansion: Supports Tower Elevator modules, peripheral add-ons, PCI Express® connectors
- Dimensions: Approximately 3.5 inches high, wide, and long, with mounting holes
Buy the Buy Freescale TWR-MCF51JG Part Number TWRMCF51JG Online
Get your Freescale TWR-MCF51JG Tower Controller Module online today to enhance your embedded development projects. Featuring a powerful ColdFire+ MCU, USB interface, accelerometer, debug circuit, and expansion socket, this compact module offers a flexible platform for sensor integration, communications, and control applications. Easy to set up and configure, it supports stand-alone or Tower System operation. Perfect for developers seeking a reliable, expandable solution for embedded system prototyping and product development. Order now to accelerate your project timeline and ensure dependable performance.
Order your Freescale TWR-MCF51JG Tower Controller Module today and give your embedded projects a reliable, flexible development platform with extensive connectivity options.
Frequently Asked Questions
Where can I buy NXP TWRMCF51JG?
You can click on the BUY or RFQ button to purchase TWRMCF51JG from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part TWRMCF51JG?
You can download the TWRMCF51JG datasheet or visit the NXP website for support.
Who is the manufacturer of TWRMCF51JG?
NXP
