NXP NTS0104UK012 Voltage Level Translator
The NTS0104 is a dual supply translating transceiver with open-drain outputs and automatic direction sensing. It supports bidirectional voltage level translation between A and B ports, operating with supply voltages ranging from 1.65 V to 3.6 V on Veca and from 2.3 V to 5.5 V on Veo. Designed for high-speed data transfer up to 50 Mbps, it features low power consumption, ESD protection, and is suitable for interfacing devices operating at different voltage levels, including I2C, SMBus, UART, and GPIO applications. The device operates over temperature ranges from -40°C to +125°C in various package options, ensuring versatile integration in digital systems.
NXP NTS0104UK012 Voltage Level Translator Specifications:
- Supply Voltage A (Veca): 1.65 V to 3.6 V
- Supply Voltage B (Veo): 2.3 V to 5.5 V
- Data Rate: up to 50 Mbps
- Propagation delay: approximately 3.2 to 8.5 ns depending on voltage
- Input voltage tolerance: up to 5.5 V
- ESD Protection: exceeds 2500 V for A port, 8000 V for B port
- Operating temperature range: -40°C to +125°C
- Power dissipation: typically 250 mW at maximum
- Package types: TSSOP14, DHVQFN14, XQFN12, WLCSP12
- Part number: NTS0104UK012

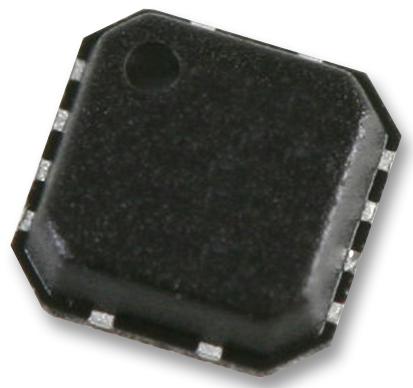

Buy the Buy NXP NTS0104UK012 Dual Supply Level Translator Online
Purchase the NXP NTS0104UK012 voltage level translator online today to experience seamless bidirectional voltage translation. This high-speed, dual supply device supports data rates up to 50 Mbps and accommodates a wide range of supply voltages from 1.65 V to 5.5 V, making it ideal for interfacing devices operating at different levels in digital communication systems. With robust ESD protection and a durable package, it ensures long-lasting performance in various industrial and consumer electronic applications. Order now for fast delivery!
Get NXP NTS0104UK012 today—designed for reliable voltage translation with high data rates and robust ESD protection for industrial and consumer applications.
Frequently Asked Questions
Where can I buy NXP NTS0104UK012?
You can click on the BUY or RFQ button to purchase NTS0104UK012 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part NTS0104UK012?
You can download the NTS0104UK012 datasheet or visit the NXP website for support.
Who is the manufacturer of NTS0104UK012?
NXP
