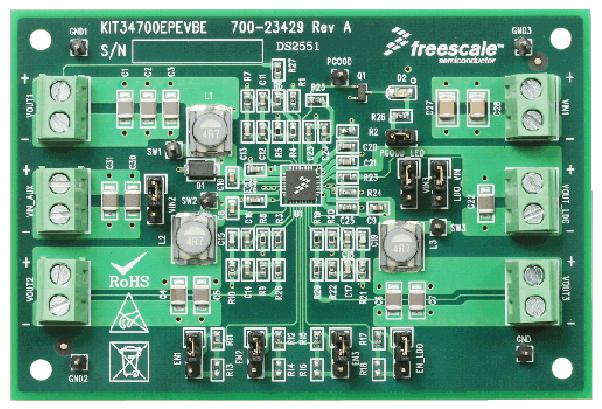

NXP KIT34700EPEVBE Power Management Kit
The evaluation kit features the MC34700, a highly efficient single-chip power supply with four outputs. It integrates three high-performance switching buck regulators—two of which are synchronous—along with a low-dropout (LDO) linear regulator and a supervisory circuit. All switching regulators use voltage mode control and support external compensation, allowing customization of performance and external component selection. The kit offers high-accuracy voltage outputs (±1%), user-configurable power-up sequencing, cycle-by-cycle current limiting, short-circuit protection, thermal shutdown, and over-voltage, under-voltage, and over-current protections. It includes supervisory functions such as an active-high power-good signal and enable inputs. Designed for power management and communications/networking applications, the kit contains an assembled and tested evaluation board/module in an anti-static bag, along with a CD-ROM.
NXP KIT34700EPEVBE Power Management Kit Specifications:
- Four outputs including three buck regulators and one linear regulator
- Buck regulators: two synchronous, one non-synchronous
- Output voltages: 2.0 to 5.25 V for Buck 1, 0.7 to 3.6 V for Buck 2 and 3, 0.7 to 3.6 V for LDO
- Maximum output current: 1.5 A for Buck 1, 1.25 A for Buck 2 and 3, 400 mA for LDO
- Input voltage range: 9.0 to 18 V for Buck 1; 1.5 to 6.0 V for Buck 2, 3, and LDO
- Switching frequency: fixed at 800 kHz
- Protection features: over-voltage, under-voltage, over-current, thermal shutdown, short-circuit
- High-accuracy voltage regulation (±1%)
- User-configurable power-up and shutdown sequencing via enable pins
- Power-good supervisory signal with open-drain output
- Cycle-by-cycle current limit and soft-start features
- Compatible with external compensation components for optimized control loop performance
