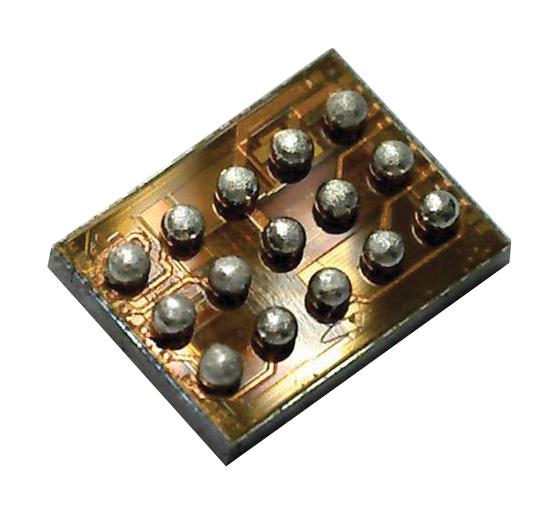

NXP NX20P5090UKAZ High Voltage Power Switch
The NX20P5090UK is an advanced 5A uni-directional high-voltage power switch designed for USB Power Delivery. It features under-voltage lockout, over-voltage lockout with adjustable threshold, reverse current protection, and over-temperature protection. Operating from 2.5 V to 20 V, it provides essential over-current and surge protection, with a small 15-bump WLCSP package. Ideal for USB PD applications in smartphones, tablets, and notebooks, it ensures system reliability by automatically isolating terminals during faults and limiting inrush current with built-in slew rate control.
NXP NX20P5090UKAZ High Voltage Power Switch Specifications:
- Supply Voltage Range: 2.5 V to 20 V
- Maximum Continuous Switch Current: 5A
- Over Voltage Protection Threshold: 23V (adjustable via resistor divider)
- Surge Voltage Tolerance: +90 V without capacitor, +100 V with 22uF capacitor
- Package: WLCSP15, 1.54 x 2.56 mm, 0.5mm pitch
- Operating Temperature: -40°C to +85°C
- ON Resistance: 30 to 43 mΩ
- Detection of reverse current when VINT exceeds VBUS by 45mV
- Over-temperature shutdown at 140°C, re-enable below 115°C
- Built-in slew rate control to limit inrush current
Buy the NXP Series NX20P5090 Power Switch: NX20P5090UK
Purchase the NXP NX20P5090UK high-voltage power switch online today. Designed for USB PD applications, it offers 5A continuous current, over-voltage and over-temperature protection, and a compact wafer scale package. Ideal for smartphones, tablets, and laptops, this device enhances system reliability by automatically isolating terminals during faults and limiting inrush current with built-in slew rate control. Order now for secure, efficient power management in your portable devices.
Get NXP NX20P5090UK today—built for high-current USB PD power switching and reliable fault protection.
