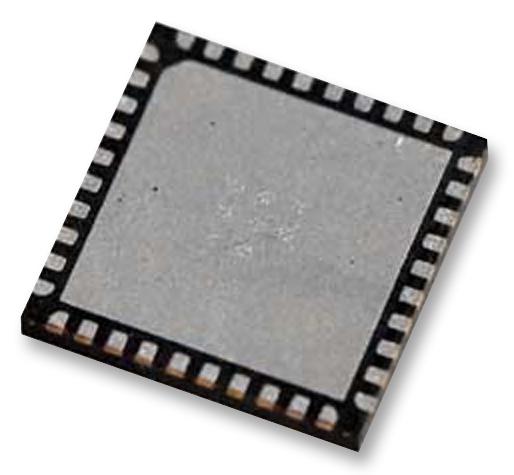

NXP QN9030THN001Z Bluetooth Microcontroller
The QN9030T is an ultra-low power Bluetooth 5.0 wireless microcontroller supporting multiple digital peripherals, ADC, DAC, NFC, and advanced security features. It features an ARM Cortex-M4 core running up to 48 MHz, embedded flash of 320 KB, and 88 KB RAM. It supports low power modes, multiple communication interfaces including I2C, SPI, USART, and features a dedicated NFC tag. The device is suitable for IoT, wearables, and energy-harvesting applications, providing high performance with minimal power consumption, and is packaged in a compact HVQFN40 package for easy integration.
NXP QN9030THN001Z Bluetooth Microcontroller Specifications:
- Core: ARM Cortex-M4 up to 48 MHz
- Flash Memory: 320 KB
- RAM: 88 KB
- Supply Voltage: 1.9 V to 3.6 V
- Package: HVQFN40, 6 x 6 x 0.85 mm
- Bluetooth Version: 5.0, supporting 2 Mbps high data rate
- Supported interfaces: I2C, SPI, USART, PDM, SPI, NFC, NFC Tag support
- Low power modes: Sleep, Deep Sleep, Power-down, Deep Power-down
- Advanced security: AES 128/192/256-bit, hardware RNG, SHA-1/256
- Peripherals: ADC 12-bit, DAC, NFC, Counter timers, PWM, DMA
- Temperature Range: -40°C to 125°C (standard), -40°C to 105°C (with NFC)
- Memory protection and system timers included
Buy the NXP Series QN9030 Bluetooth Low Energy Microcontroller: QN9030THN001Z
Discover the NXP Series QN9030T Bluetooth Low Energy microcontroller, a high-performance device designed for IoT and energy-harvesting solutions. Featuring an ARM Cortex-M4 core up to 48 MHz, 320 KB Flash, and 88 KB RAM, it supports Bluetooth 5.0 with high data rates, NFC, and multiple communication protocols. Its ultra-low power modes, integrated security features, and compact HVQFN40 package make it ideal for portable, battery-operated, or energy-harvesting devices. Order online today to streamline your IoT development with reliable, secure, and energy-efficient wireless connectivity.
Get NXP Series QN9030THN001Z Bluetooth Low Energy microcontroller today—optimized for low-power IoT, wearables, energy-harvesting, and secure wireless applications.
Frequently Asked Questions
Where can I buy NXP QN9030THN001Z?
You can click on the BUY or RFQ button to purchase QN9030THN001Z from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part QN9030THN001Z?
You can download the QN9030THN001Z datasheet or visit the NXP website for support.
Who is the manufacturer of QN9030THN001Z?
NXP
