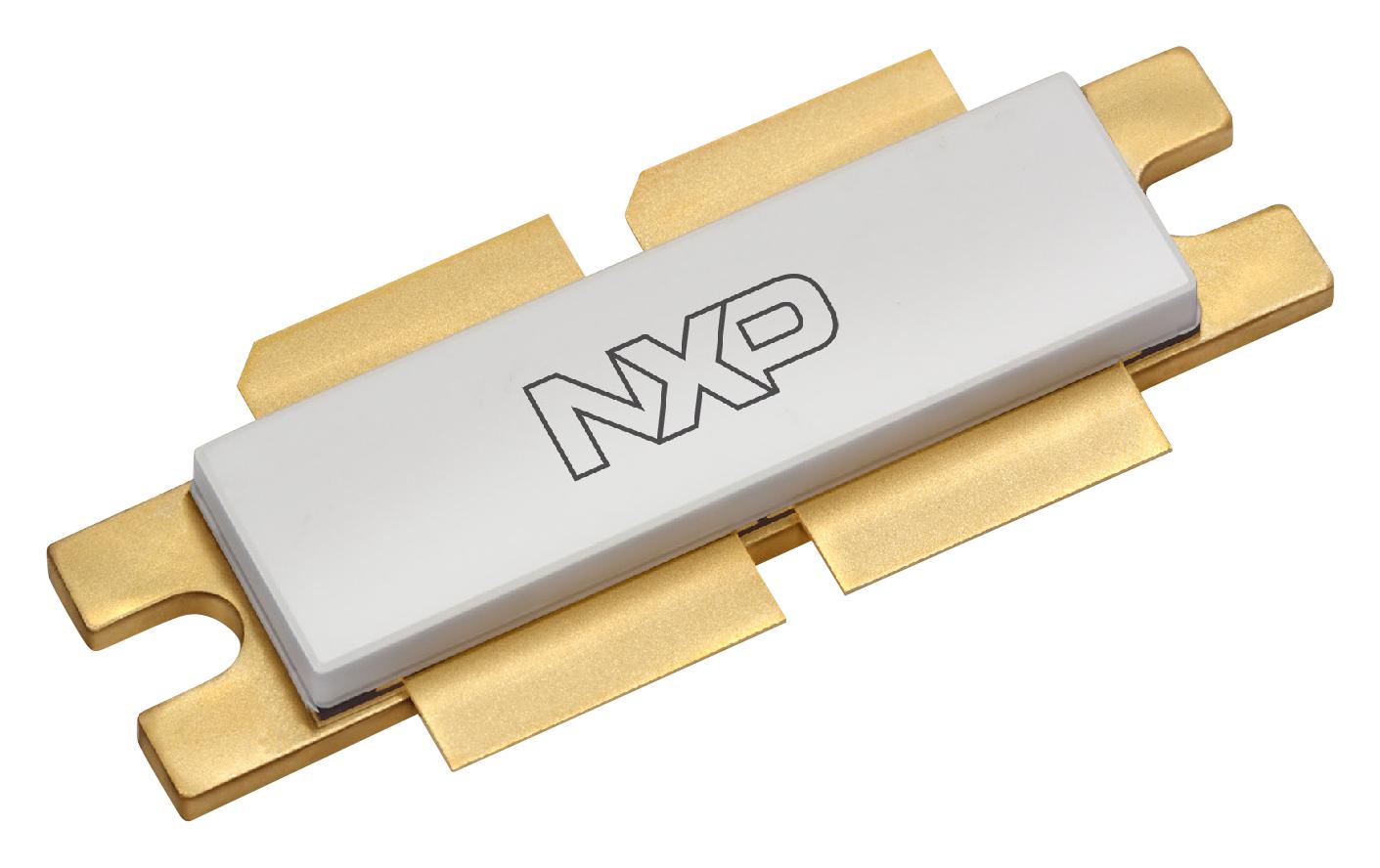

NXP MRF1K50HR5 RF Power Transistor
The MRF1K50H is a high-power, wideband RF LDMOS transistor designed for frequencies from 1.8 to 500 MHz. It offers up to 1500 W CW output power at 50 V, with excellent ruggedness and load mismatch tolerance exceeding 65:1 VSWR. Ideal for industrial, scientific, medical, broadcast, aerospace, and mobile radio applications, it features integrated ESD protection, low thermal resistance, and can be used in linear or switching modes in various configurations. Extensive thermal and electrical characteristics ensure reliable performance in demanding high-frequency applications.
NXP MRF1K50HR5 RF Power Transistor Specifications:
- Frequency Range: 1.8 to 500 MHz
- Output Power: 1500 W CW at 50 V
- Drain-Source Voltage: 135 V (de), 0.5 V (Voss)
- Gate-Source Voltage: -6 to +10 V (Ves)
- Total Device Dissipation: 1667 W
- Thermal Resistance, Junction to Case: 0.10 °C/W
- Thermal Impedance, Junction to Case: 0.028 °C/W
- Maximum Operating Junction Temperature: +225 °C
- Storage Temperature Range: -65 to +150 °C
- Operating Case Temperature: -40 to +150 °C
- ESD Protection: Human Body Model 2500 V, Machine Model 250 V, Charge Device Model 2000 V
- Load Mismatch Tolerance: VSWR > 65:1 at all tested frequencies
- Characterized at 30-50 V for ease of use
- Compatible with single-ended or push-pull configurations
- Includes integrated ESD protection with negative gate-source voltage range
Buy the NXP Series Wideband RF Power Transistor: MRF1K50H
Upgrade your high-power RF system with the NXP Series RF Power Transistor MRF1K50H. Designed for frequencies from 1.8 to 500 MHz, it delivers up to 1500 W CW at 50 V with excellent load mismatch tolerance exceeding 65:1 VSWR, ensuring reliable performance in demanding industrial, broadcast, aerospace, and mobile applications. Its intrinsic ruggedness, low thermal resistance, and integrated ESD protection make it ideal for linear and switching operations. Purchase online today to enhance your RF solutions with trusted, high-efficiency power transistors from NXP.
Order your NXP Series Wideband RF Power Transistor MRF1K50H today and give your high-frequency projects the dependable power and ruggedness they need.
Frequently Asked Questions
Where can I buy NXP MRF1K50HR5?
You can click on the BUY or RFQ button to purchase MRF1K50HR5 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part MRF1K50HR5?
You can download the MRF1K50HR5 datasheet or visit the NXP website for support.
Who is the manufacturer of MRF1K50HR5?
NXP
