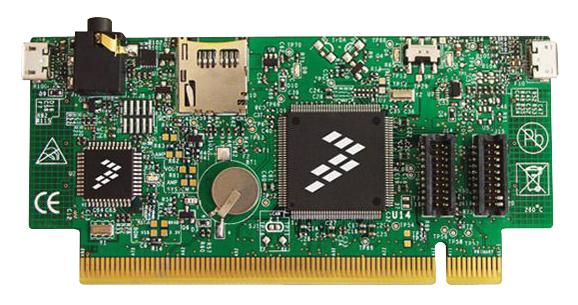

NXP KWIKSTIKK40 Kinetis Development Platform
The KwikStik development tool offers a compact, flexible solution for evaluating, developing, and debugging Kinetis ARM Cortex-M4 MCUs. Featuring a 100 MHz core, 256 KB flash, capacitive touch sensing, segment LCD, USB On-the-Go, infrared, and audio interfaces, it suits embedded system design. The device includes a micro SD slot, J-Link debugger, and is housed in a silicone enclosure, providing a complete platform with integrated demos and software from Freescale and third-party partners. Ideal for rapid prototyping and in-depth firmware testing in compact form factors.
NXP KWIKSTIKK40 Kinetis Development Platform Specifications:
- MCU: K40X256VLQ100 (144LQFP)
- Core: ARM Cortex-M4 with DSP
- Core Frequency: 100 MHz
- Operating Voltage: 1.71V-3.6V
- Flash Memory: 256 KB
- FlexMemory: 256 KB with support for 4 KB EEPROM
- Display: 306 segment LCD
- Interfaces: Capacitive touch sensing, Infra-red, Micro SD, 3.5 mm audio jack
- Connectivity: USB On-the-Go, Micro USB, J-Link Debugger
- Power: Lithium rechargeable battery
- Housing: Flexible silicone enclosure
- Software Support: MQX RTOS, IAR Embedded Workbench, Keil MDK, Green Hills MULTI IDE, CodeWarrior
- System Expansion: TWRPI socket, Peripheral modules available
Buy the Freescale Series KwikStik K40: KWIKSTIKK40
Order the Freescale KwikStik K40 now and accelerate your embedded system projects. This all-in-one evaluation platform features a powerful ARM Cortex-M4 MCU, capacitive touch sensing, segment LCD, USB On-the-Go, infrared, and audio interfaces in a compact silicone enclosure. It includes demos, software tools, and multiple connectivity options such as micro SD and J-Link debugger, making it ideal for quick prototyping and debugging. Enhance your development process with this flexible, all-in-one kit designed for engineers and innovators.
Get Freescale KwikStik K40 today—built for rapid prototyping and embedded system development with versatile interfaces and software support.
Frequently Asked Questions
Where can I buy NXP KWIKSTIKK40?
You can click on the BUY or RFQ button to purchase KWIKSTIKK40 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part KWIKSTIKK40?
You can download the KWIKSTIKK40 datasheet or visit the NXP website for support.
Who is the manufacturer of KWIKSTIKK40?
NXP
