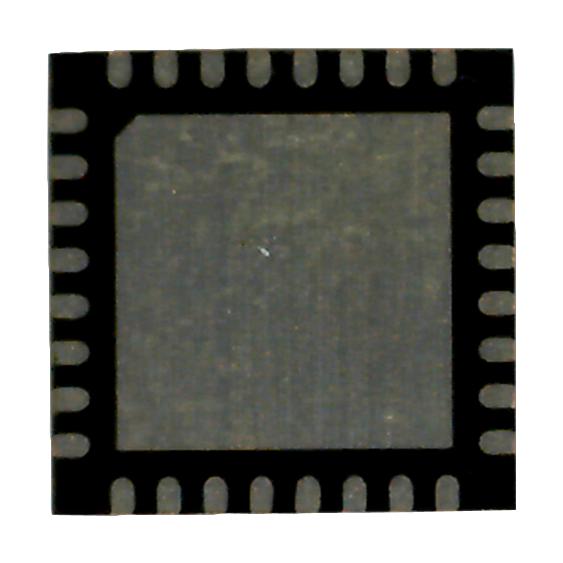

NXP PTN3366BSMP HDMI DVI Level Shifter
The PTN3366 is a low power, high-speed level shifter supporting up to 3 Gbit/s per lane for HDMI and DVI applications. It converts four high-speed differential input signals to HDMI v1.4b and DVI v1.0 compliant TMDS outputs with integrated equalization, and provides active buffers for DDC, HPD, and control signals. Designed for 4K, 3D, deep color modes, and multiple standards, it features back-current protection, low power consumption (72 mW typical), and a compact HVQFN32 package, ideal for modern display systems.
NXP PTN3366BSMP HDMI DVI Level Shifter Specifications:
- Supports 3 Gbit/s TMDS operation per lane (up to 300 MHz clock)
- Converts four differential lanes with active buffers and integrated equalization
- Voltage translation for DDC channel (3.3 V to 5 V) with rise time acceleration
- Supports HDMI v1.4b and DVI v1.0 standards for high-speed differential signals
- Power supply voltage: 3.3 V with typical consumption of 72 mW
- Backdrive protection on TMDS outputs, DDC, and HPD lines
- Integrated 50 Ω termination resistors for differential inputs
- Supports hot-plug detect (HPD) level shifting and active buffering
- Supports standby, active, and ultra low-power modes via OE_N and DDC_EN controls
- Package: HVQFN32 (5 x 5 x 0.85 mm) with exposed thermal pad for optimal heat conduction
Buy the NXP PTN3366 – Reliable HDMI DVI Level Shifter for Industrial Applications
Get the NXP PTN3366 high-speed HDMI DVI level shifter online today. Designed for 4K and 3D video formats, it supports up to 3 Gbit/s per lane, ensuring reliable, high-quality signal conversion for advanced display systems. Its integrated equalization, active buffers, and low power consumption make it perfect for modern industrial, consumer, and professional applications. With backdrive protection and comprehensive voltage translation features, the PTN3366 provides a robust solution for demanding high-speed digital video interfaces. Purchase now and enhance your project’s performance with proven reliability.
Order your NXP PTN3366 Level Shifter today and give your display projects the dependable high-speed performance they deserve.
