NXP NX20P0408UKZ USB Protection IC
The NX20P0408 is a high-performance USB data lines protection IC designed for Type C connectors, offering robust overvoltage, short circuit, and ESD protection for D+ and D- lines. It features 28V DC tolerance, rapid disconnects under overvoltage conditions, and post-stage clamp circuitry to limit voltage spikes to 7V, ensuring the safety of connected devices. Its bandwidth of 1.5GHz makes it suitable for high-speed USB applications across smartphones, tablets, and laptops, providing reliable protection against voltage surges, shorts, and moisture-induced faults.
NXP NX20P0408UKZ USB Protection IC Specifications:
- Voltage range: 0.5 to 28 V for CON_DP and CON_DN pins
- Surge protection: 35V on CON_DP/CON_DN
- Overvoltage threshold Vove: 46-48 V, hysteresis 100 mV
- Switch bandwidth: 1.5 GHz
- Response time to overvoltage: 60 ns
- Clamp voltage: 7 V
- Power supply voltage (VSYS): 2.14 to 240 V, typical 3.6 V
- Leakage current: 32 to 55.5 pA at 3.6 V
- Operating temperature: -40°C to +85°C
- Package: WLCSP12, 12 bumps, 1.67 x 1.27 x 0.525 mm

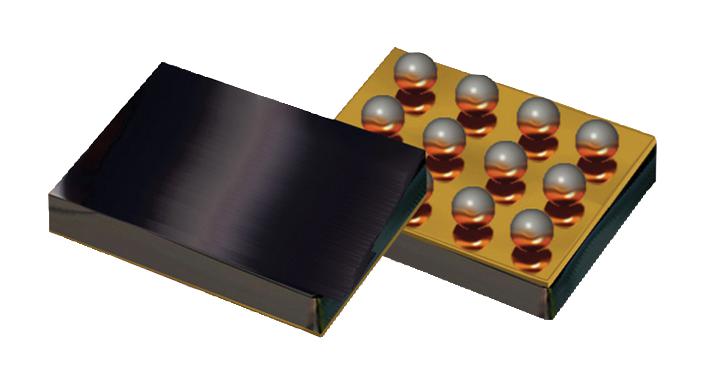

Buy the Buy NXP NX20P0408 USB Data Line Protection Part Number NX20P0408UKZ Online
Enhance your device safety with the NXP NX20P0408 USB protection IC. Offering overvoltage, short circuit, and ESD protection for D+ and D- lines, it ensures high-speed reliable connections for smartphones, tablets, and laptops. Its robust 28V DC tolerance and rapid disconnection within 60 ns safeguard sensitive components from voltage surges and moisture-induced faults. With a bandwidth of 1.5GHz and compact WLCSP12 packaging, it is ideal for space-conscious high-speed data applications, delivering dependable performance and device longevity when purchased online.
Order your NXP NX20P0408 USB Type C protection IC today and ensure your device's data lines are safeguarded against overvoltage and short circuits.
Frequently Asked Questions
Where can I buy NXP NX20P0408UKZ?
You can click on the BUY or RFQ button to purchase NX20P0408UKZ from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part NX20P0408UKZ?
You can download the NX20P0408UKZ datasheet or visit the NXP website for support.
Who is the manufacturer of NX20P0408UKZ?
NXP
