NXP PTN3392BS518 DisplayPort to VGA Converter
The PTN3392 is a high-performance DisplayPort to VGA adapter IC designed for seamless connection between DisplayPort sources and VGA sinks. It integrates a compliant DisplayPort receiver supporting 1.1a v1 lanes at 1.62 or 2.7 Gbit/s per lane, and a triple 8-bit digital-to-analog converter capable of outputting resolutions up to WUXGA at 240 MHz pixel clock. Features include monitor detection, EDID handling, support for various resolutions, hot-plug detection, low power modes, and simple firmware upgrades, making it ideal for dongles, docking stations, and digital signage. It is powered directly from 3.3 V supply, has ESD protection, and a compact HVQFN48 package for space-constrained applications.
NXP PTN3392BS518 DisplayPort to VGA Converter Specifications:
- Supports DisplayPort v1.1a Main Link: 1 or 2 lanes at 1.62 or 2.7 Gbit/s per lane
- Supports display resolutions from VGA to WUXGA (1920x1200) with pixel clock up to 240 MHz
- Triple 8-bit DAC outputs 700 mV peak-to-peak signals into 75 Ω load
- Supports active, low-power, and firmware upgrade modes
- Supports Hot Plug Detect (HPD) and monitor detection with DDC/EDID handling
- Operating voltage: 3.3 V ±10%
- Power dissipation: approximately 600 mW at UXGA, 500 mW at SXGA
- Support for spread spectrum clocking and built-in reset circuitry
- Package: HVQFN48, dimensions 7 x 7 x 0.85 mm
- Supports various display resolutions including VGA, SVGA, XGA, SXGA, UXGA, WXGA, HD, and WUXGA
- Supports RGB color formats with bits per color: 6, 8, up to 16 bits
- Supports monitor load sensing, cable length control, and cable load detection
- ESD protection: 7 kV HBM, 8 kV IEC
- Supports external clock reference with integrated crystal oscillator
- Supports firmware upgrades via Flash-over-AUX and 1 MHz AUX channel
- Input: differential DisplayPort signals; output: analog RGB with sync signals
- Supply pins: 3.3 V power and ground, with decoupling capacitors recommended
- Supports external reference resistor for DAC calibration
- Temperature range: 0°C to 85°C
- Environmentally friendly, lead-free, RoHS compliant

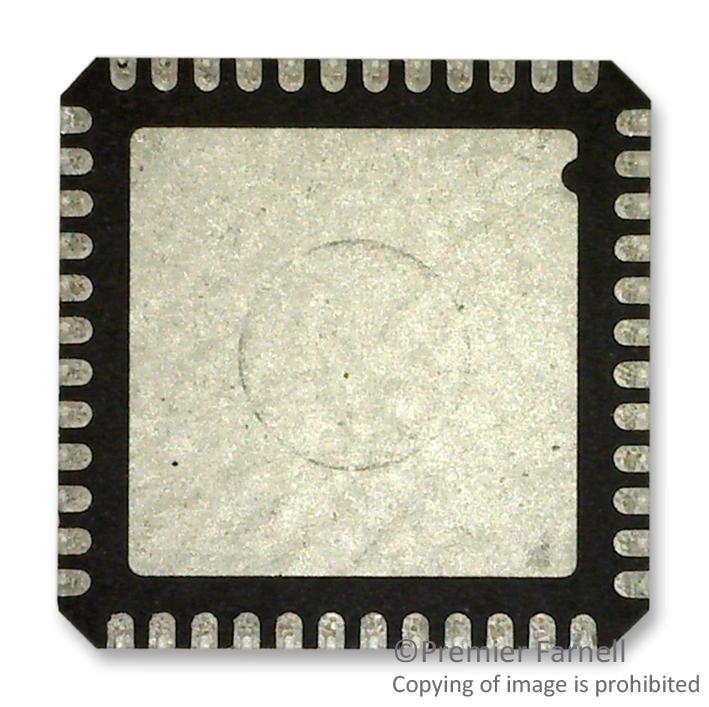

Buy the NXP PTN3392 – Reliable DisplayPort to VGA Adapter for Industrial Applications
Purchase the NXP PTN3392 today to enjoy seamless high-resolution DisplayPort to VGA conversion with monitor detection, EDID handling, and firmware upgrade capabilities. Perfect for dongles, docking stations, and professional displays, this reliable IC supports resolutions up to WUXGA, ensuring crisp video output. Its compact HVQFN48 package, low power consumption, and robust protections make it ideal for industrial and commercial applications. Order now to integrate this advanced connector solution into your project with ease and confidence.
Get NXP PTN3392 today—built for precision, high-resolution output, and long-lasting durability in professional and industrial environments.
Frequently Asked Questions
Where can I buy NXP PTN3392BS518?
You can click on the BUY or RFQ button to purchase PTN3392BS518 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part PTN3392BS518?
You can download the PTN3392BS518 datasheet or visit the NXP website for support.
Who is the manufacturer of PTN3392BS518?
NXP
