NXP PN5120A0HN1C2157 Contactless NFC Frontend
The PN512 is a highly integrated NFC frontend capable of contactless communication at 13.56 MHz, supporting ISO/IEC 14443A/B, FeliCa, and NFCIP-1 modes. It features multiple host interfaces including SPI, I2C, and UART, and supports various operating modes such as reader/writer and card mode. This product provides robust demodulation, decoding, and a 64-byte FIFO buffer, with configurable power-down and oscillator start-up times. Designed for seamless integration into NFC applications, it offers enhanced performance, security, and flexibility for contactless systems.
NXP PN5120A0HN1C2157 Contactless NFC Frontend Specifications:
- Supported protocols: ISO/IEC 14443A/B, FeliCa, NFCIP-1
- Operating frequency: 13.56 MHz
- Communication modes: Reader/Writer, Card, NFCIP-1 active/passive
- Host interfaces: SPI up to 10 Mbit/s, I2C up to 3.4 Mbit/s, UART up to 1228.8 kBd, 8-bit parallel
- FIFO buffer: 64 bytes
- Power supply: 2.5 V to 3.6 V
- Operation temperature: -40°C to +90°C (industrial version), -30°C to +85°C (commercial)
- Tuning: External antenna matching required, with programmable conductance and load modulation settings
- Crystal oscillator: 27.12 MHz with internal oscillator buffer or external clock input
- Power-down modes: Hard, soft, and transmitter power-down
- Integrated RF level detector and self-test capabilities
- Package options: HVQFN32, HVQFN40, TFBGA64

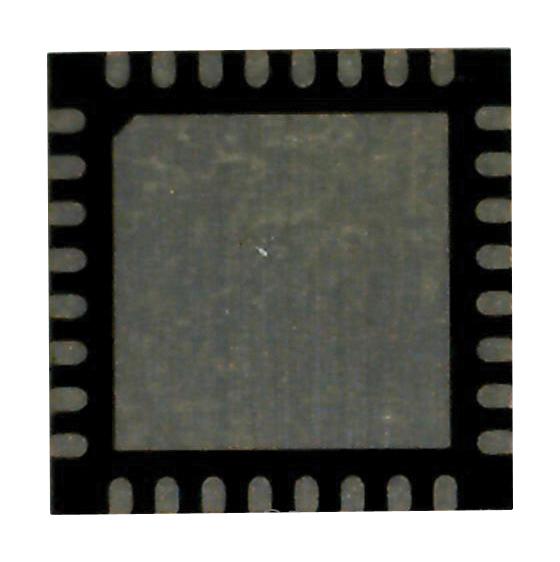

Buy the Buy NXP PN512 Part Number PN5120A0HN1/C2 Online
Discover the high-performance NXP PN512 NFC frontend designed for contactless communication at 13.56 MHz. Supporting ISO/IEC 14443A/B, FeliCa, and NFCIP-1, it offers multiple host interfaces including SPI, I2C, and UART, along with a 64-byte FIFO buffer for efficient data handling. Ideal for secure, robust NFC applications, the PN512 features programmable power-down modes, integrated RF level detectors, and external antenna matching, ensuring reliable operation over distances up to 50 mm depending on tuning and external conditions. Order online today and integrate proven contactless NFC with confidence.
Order your NXP PN512 contactless NFC frontend today and enhance your contactless communication projects with proven NFC technology and flexible interfaces.
Frequently Asked Questions
Where can I buy NXP PN5120A0HN1C2157?
You can click on the BUY or RFQ button to purchase PN5120A0HN1C2157 from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part PN5120A0HN1C2157?
You can download the PN5120A0HN1C2157 datasheet or visit the NXP website for support.
Who is the manufacturer of PN5120A0HN1C2157?
NXP
