NXP PTN3460IBSF1MP Display Interface Bridge
The PTN3460I is an industrial-grade embedded DisplayPort to LVDS bridge device that converts DP video streams into LVDS signals suitable for high-resolution display panels. It supports two high-speed ports, multiple lane configurations, and operates from 3.3 V with options for dual power supplies. Features include EDID emulation, panel control via AUX commands, and wide temperature tolerance from -40°C to +85°C, making it ideal for embedded and industrial applications requiring reliable and flexible display interface conversion.
NXP PTN3460IBSF1MP Display Interface Bridge Specifications:
- Operating temperature: -40°C to +85°C
- Supply voltage: 3.3 V (single), dual option for 3.3 V/1.8 V
- Package: HVQFN56, 7 mm x 7 mm with 0.4 mm pitch
- DisplayPort version: v1.2a/v1.1a
- Supports DP link rate: 1.62 Gbit/s and 2.7 Gbit/s
- Supports 1 or 2 lanes, pixel clock up to 112 MHz
- LVDS output: supports 18/24 bits per pixel, dual/or single bus
- LVDS bandwidth: up to 224 MPixels/sec in dual bus mode
- EDID ROM emulation: up to 896 bytes, supports v1.3
- Panel control signals: backlight, power, PWM, with sequencing
- Power management: active, low-power, deep sleep modes
- Interfaces: DP AUX, I2C-bus, GPIOs for reset and power control
- Supports EMI reduction with down spreading and programmable signal swing
- Designed for industrial and embedded display applications

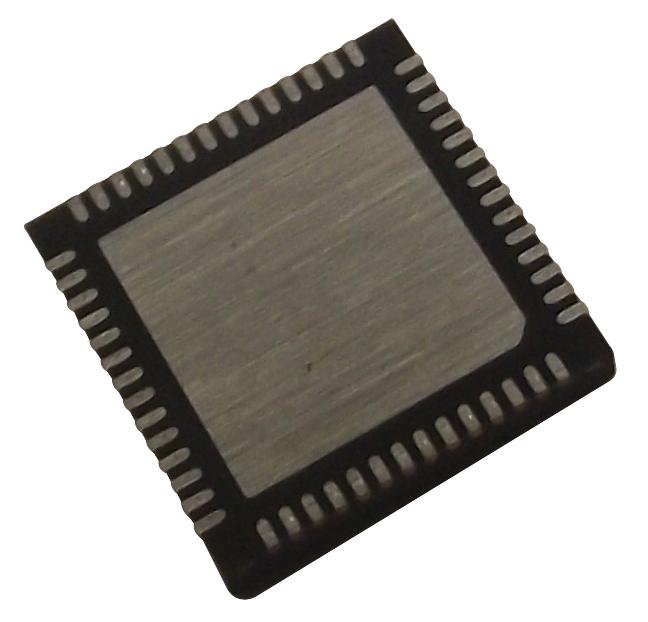

Buy the Buy NXP PTN3460I Part Number 3460I Online
Discover the NXP PTN3460I embedded DisplayPort to LVDS bridge, engineered for industrial applications requiring flexible display interfaces. This device supports 1 or 2 lanes, wide temperature range from -40°C to +85°C, and provides EDID emulation, panel control, and EMI reduction features. Its compact HVQFN56 package makes integration easy, while power management modes optimize efficiency. Perfect for embedded systems, industrial monitors, and automotive dashboards, purchase PTN3460I online for dependable display solutions and seamless upgrade paths.
Order your NXP PTN3460I Display Interface Bridge today and ensure reliable high-resolution display connectivity in industrial environments.
Frequently Asked Questions
Where can I buy NXP PTN3460IBSF1MP?
You can click on the BUY or RFQ button to purchase PTN3460IBSF1MP from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part PTN3460IBSF1MP?
You can download the PTN3460IBSF1MP datasheet or visit the NXP website for support.
Who is the manufacturer of PTN3460IBSF1MP?
NXP
