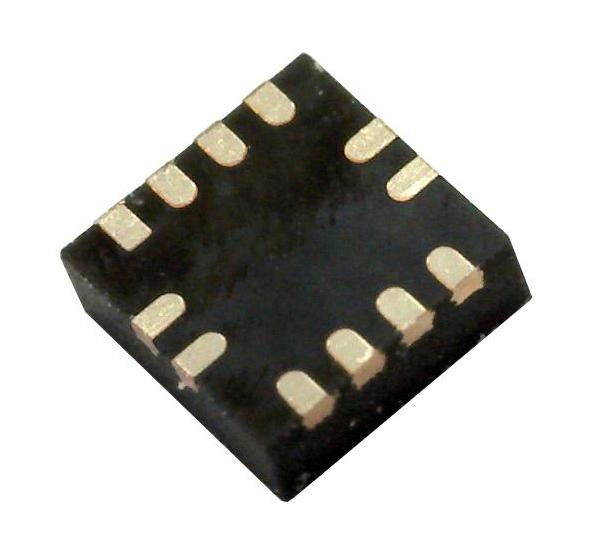

NXP PTN5150AHXMP CC Logic Chip
PTN5150A is a low power, compact CC logic chip supporting USB Type-C applications with detection and indication functions. It supports dual role, host, or device mode configuration via external pin or I2C. The chip detects current modes, port states, orientation, and accessories, and supports USB Type-C Spec. It includes VCONN power control, VBUS detection, and system status reporting via I2C registers. Designed for mobile devices, ultrabooks, and docking stations, it operates from 2.7V to 5.5V, with high ESD protection and an ultra-low power standby mode, ensuring reliable performance in compact form factors.
NXP PTN5150AHXMP CC Logic Chip Specifications:
- Supply Voltage: 2.7 V to 5.5 V
- Maximum VBUS Detect: 28 V
- Temperature Range: -40 °C to +85 °C
- Package: X2QFN12, 1.6 mm x 1.6 mm x 0.35 mm
- ESD Protection: >7000 V HBM, 500 V CDM
- Low Power Standby Mode: 15 pA (DRP, UFP, DFP modes)
- Port Detection: CC1, CC2 pins, Cable and Role Detection
- Current Mode Detection: 500 mA/900 mA default, Medium (1.5 A), High (3.0 A)
- VCONN Control: 2 x GPIO for power switching
- I2C Interface: Up to 400 kHz, supported for register programming and status
- Operating Temp: -40°C to +85°C
- High ESD and Latch-up protection
- Supports legacy OTG hardware and software
- Supports plug, orientation, role, and charging current detection
