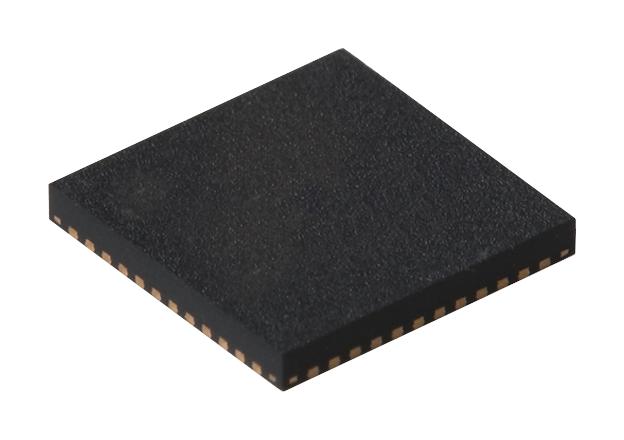

NXP QN9020DY Bluetooth Low Energy System-on-Chip
The QN9020 is an ultra low power Bluetooth LE system-on-chip designed for wireless applications in sports, fitness, medical, peripherals, and smart accessories. It integrates a high-performance 2.4 GHz RF transceiver, a 32-bit ARM Cortex-M0 MCU with 64 kB memory, and various digital and analog peripherals. Features include Bluetooth LE protocol support, power management with DC-DC converter, multiple communication interfaces such as SPI, UART, I2C, and a secure AES coprocessor. Its compact size and low power consumption make it ideal for battery-powered wearable electronics and IoT devices.
NXP QN9020DY Bluetooth Low Energy System-on-Chip Specifications:
- Power supply: 2.4 V to 3.6 V (QN9020/1), 1.8 V to 3.6 V (QN9022)
- RF frequency: 2400 MHz to 2483.5 MHz
- TX output power: from -20 dBm to +4 dBm
- RX sensitivity: -95 dBm (non-DC-DC mode), -93 dBm (DC-DC mode)
- Operating temperature: -40°C to +85°C
- Crystal oscillator: 16 MHz or 32 MHz with ±50 ppm accuracy
- Package options: HVQFN48, HVQFN32, HVQFN40
- Supported Bluetooth profiles: device info, battery, blood pressure, find me, glucose, heart rate, HID over GATT, proximity, time, alert notifications, phone alert, cycling and running speed and cadence
- Peripherals: ADC, analog comparators, timers, RTC, WDT, PWM, DMA, AES, UART, SPI, I2C
- Sleep modes: deep sleep (2 μA), sleep (3 nA), idle
- Integrated DC-DC converter, LDO regulators
- Real-time clock, random number generator, and security coprocessor
Buy the NXP QN9020 Reliable Bluetooth LE System-on-Chip for Industrial Applications
Purchase the NXP QN9020 Bluetooth LE System-on-Chip online today and enhance your wireless devices with low power consumption, comprehensive Bluetooth profiles, and robust security features. Ideal for wearable electronics, medical gadgets, and IoT projects, this compact and highly integrated chip simplifies your design process. With support for multiple communication interfaces, Bluetooth profiles, and advanced power management options, it delivers reliable performance and long battery life for your innovative applications. Get yours now and start building smarter, energy-efficient wireless solutions.
Order your NXP Series QN9020 Bluetooth LE System-on-Chip today and give your projects the dependable low power wireless performance they deserve.
Frequently Asked Questions
Where can I buy NXP QN9020DY?
You can click on the BUY or RFQ button to purchase QN9020DY from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part QN9020DY?
You can download the QN9020DY datasheet or visit the NXP website for support.
Who is the manufacturer of QN9020DY?
NXP
