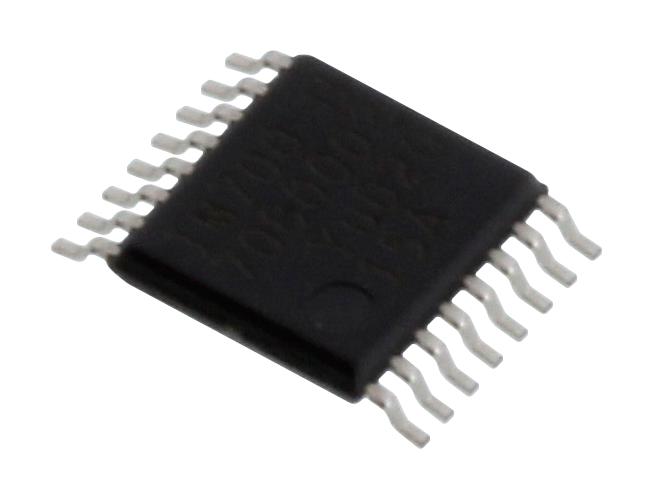

NXP SC18IS602BIPWS8HP I2C-SPI Bridge
The I2C-to-SPI bridge enables seamless communication between a microcontroller's I2C bus and various SPI devices. Supporting I2C speeds up to 400 kHz and SPI frequencies up to 1.8 Mbit/s, it features a 200-byte data buffer, four programmable I/O pins, and operates within 2.4V to 3.6V. It includes an internal oscillator, low power mode, and active LOW interrupt output. ESD protection exceeds 2000V (HBM) and 200V (MM), with latch-up testing per JEDEC standards ensuring reliability in industrial applications.
NXP SC18IS602BIPWS8HP I2C-SPI Bridge Specifications:
- Support for I2C-bus up to 400 kHz
- SPI master up to 1.8 Mbit/s
- 200-byte data buffer
- Up to four programmable I/O pins
- Operating voltage range 2.4 V to 3.6 V
- Internal oscillator option
- Active LOW interrupt output
- ESD protection > 2000 V HBM, 200 V MM
- Latch-up testing per JEDEC standards
- Very small 16-pin TSSOP package
- Supports low power mode
Buy the Buy NXP SC18IS602B Part Number SC18IS602BIPWS8HP Online
Purchase the NXP SC18IS602B I2C-to-SPI bridge online now to enhance your embedded system. This versatile component supports I2C speeds up to 400 kHz and SPI up to 1.8 Mbit/s, with a 200-byte buffer, four GPIOs, and a wide voltage range of 2.4V to 3.6V. It features internal oscillator control, low power mode, and active LOW interrupt output. Certified for ESD protection exceeding 2000V (HBM) and 200V (MM), and validated with JEDEC latch-up testing, ensuring durability and performance for industrial automation and communications systems.
Get NXP SC18IS602B today—built for reliable I2C to SPI communication with high-speed operation and robust ESD protection.
Frequently Asked Questions
Where can I buy NXP SC18IS602BIPWS8HP?
You can click on the BUY or RFQ button to purchase SC18IS602BIPWS8HP from an authorized NXP distributor.
How do I troubleshoot issues or seek technical support for part SC18IS602BIPWS8HP?
You can download the SC18IS602BIPWS8HP datasheet or visit the NXP website for support.
Who is the manufacturer of SC18IS602BIPWS8HP?
NXP
