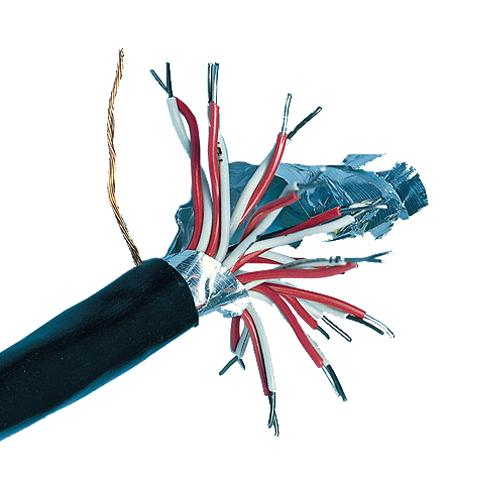

OMEGA 8KX24SPP multipair extension cable
This multipair extension cable features multiple twisted pairs with polyvinyl jacket insulation, an aluminum-backed polyester shield, and a stranded tinned-copper drain wire for electrostatic shielding. It includes an extra polyvinyl-clad copper wire for ground or signal circuits, with all pairs color-coded for easy identification. Designed to withstand temperatures up to 105°C, the cable is flexible with minimum bending radii based on overall diameter. It supports custom configurations, including FEP insulation, overbraided alternatives, and two-pair designs for versatile industrial and signal wiring applications.
OMEGA 8KX24SPP multipair extension cable Specifications:
- Cable Type: Multipair extension cable with twisted pairs
- Insulation: Polyvinyl, withstands up to 105°C (221°F)
- Jacket Thickness: Approximately 1.1 mm (0.045")
- Pair Configuration: Individually twisted pairs, color-coded
- Shielding: Aluminum-backed polyester film with electrostatic shield
- Drain Wire: Tinned copper for shielding and grounding
- Additional Wire: Polyvinyl-clad stranded copper wire for ground or signal
- Minimum Bending Radius: 6 times overall diameter for 4 pair cable, 10 for 8 pair, 14 for over 8 pairs
- Dimensions: Nominal diameters range from 8.4mm (0.33") to 20mm (0.77") depending on the number of pairs
- Temperature Range: -55°C to +105°C
- Color-Coding: ANSI standard, positive wire yellow or white, negative wire red or black, overall yellow or black
- Minimum Length: 7.5 meters (25 feet) with custom lengths available
- Construction: Stranded tinned-copper drain wire, polyester tape, polyvinyl jacket, optional FEP insulation and overbraids
- Applications: Industrial signal wiring, automation, control systems, communication circuits
Buy the Buy Multipair Extension Cable Part Number 8KX24SPP Online
Purchase the high-quality multipair extension cable with confidence online. Featuring twisted pairs, polyvinyl insulation, shielding, and color coding, this cable supports temperatures up to 105°C and is suitable for industrial wiring, control panels, and communication systems. Custom configurations like FEP insulation and overbraided options are available for specific project needs. Reliable, flexible, and easy to install, the cable ensures signal integrity and durability, making it an essential component for professional electrical and industrial wiring applications.
Order your Multipair Extension Cable with Part Number 8KX24SPP today and ensure reliable, versatile wiring for industrial automation and communication projects.
