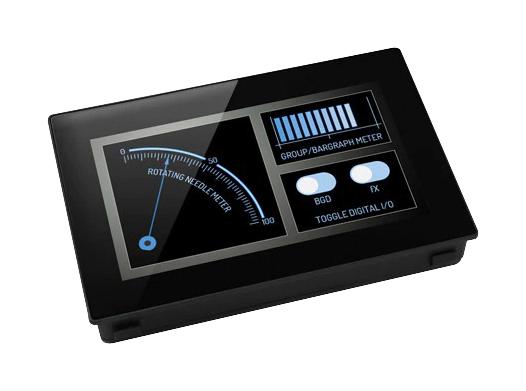

OMEGA OMSGD43A Programmable Graphic Display
The OM-SGD-43-A is a 4.3-inch capacitive touchscreen smart graphics display designed for industrial automation and control applications. It features a high-resolution TFT screen with 262K colors and a processor based on Freescale i.MX283 ARM 9 architecture, supporting rapid interface development via free Design Studio software. The display provides four analog inputs (up to +40V or 4-20 mA), eight digital I/O lines, two alarm outputs, and four PWM channels. It can be powered via USB or an external 5-30V power supply, offering flexible mounting, extensive communication options, and easy project preview and upload capabilities for sophisticated user interface design.
OMEGA OMSGD43A Programmable Graphic Display Specifications:
- Display: 4.3" TFT capacitive touchscreen, 262K colors, 480 x 272 pixels
- Processor: Freescale i.MX283 ARM 9, 454 MHz
- Memory: 1 Gbit DDR2 SDRAM, 2 GB SD card
- Power: 5 to 30 Vdc, 300 mA typical at 5 V
- Operating Temperature: 0 to 40°C (32 to 104°F)
- Dimensions: 79.8 H x 119.3 W x 20 mm D (3.1 x 4.7 x 0.8")
- Panel Cutout: 78 H x 117 W mm
- Analog Inputs: 4 voltage (+40V max) or 4 current (4-20 mA)
- ADC: 16-bit, accuracy 0.05% +1 mV for measurements up to +10V
- Alarm Outputs: 2 open-collector, sink up to 10 mA each
- Digital I/O: 8 channels, with input voltage 3.3V max, low of 0.8V; output voltage 3.3V, low of 0.4V
- PWM Outputs: 4 channels, 8-bit, 3.3V, source current -9.5 mA
- Communication Modes: RS232, SPI, I2C, RS485, Ethernet (future update)
- Software Compatibility: Windows XP SP3/Vista/7/8
Buy the Buy Omega OM-SGD-43-A Part Number OMSGD43A Online
Order the Omega OM-SGD-43-A programmable graphic display online to enhance your automation project. Featuring a 4.3-inch capacitive touchscreen, versatile analog and digital inputs, PWM and alarm outputs, it supports software-based interface creation with Drag-and-Drop simplicity. Compact and durable, it mounts easily in control panels with panel cutout dimensions of 78 x 117 mm. Powered from 5-30V or via USB, it facilitates rapid development, project testing, and seamless integration into existing control systems for industrial, commercial, or automation applications.
Get Omega OM-SGD-43-A today—designed for flexible industrial control with high-resolution graphics and multiple I/O options.
