OMEGA CN16PT304 Temperature Process Controller
The CN16PT304 is a high-precision temperature and process controller designed for industrial automation and scientific applications. It features versatile input options including thermocouples, RTDs, thermistors, process voltage/current, and strain. With a bright 4-digit, 9-segment LED display and wide viewing angle, it offers intuitive firmware-based configuration, automation recognition, and extensive ramp/soak programming capabilities. It supports various control modes, multiple alarms, USB and optional Ethernet/serial communications, making it suitable for demanding temperature control, process monitoring, and laboratory research environments.
OMEGA CN16PT304 Temperature Process Controller Specifications:
- Display: 4-digit, 9-segment LED with wide viewing angle
- Input Types: Thermocouple, RTD, thermistor, analog voltage/current, strain
- Thermocouple Inputs: K, J, T, E, R, S, B, C, N
- RTD Inputs: 100/500/1000 Ω, Pt sensor, 2-, 3-, 4-wire; curves 385, 392, 3916
- Thermistor Inputs: 2252 Ω, 5K Ω, 10K Ω; -40°C to 150°C
- Control Modes: ON/OFF, PID with Auto-Tune and Fuzzy Logic adaptive tuning
- Ramp/Soak: Up to 99 programs, 8 segments per program, chainable
- Outputs: Up to 6 programmable control/alarms/retransmission outputs; analog voltage 0-10V, current 0-20mA, DC pulses, relays
- Communications: USB (micro-USB), optional Ethernet (RJ45), serial RS232/RS485 (S/MODBUS protocol)
- Power Supply: 90-240 Vac (Line voltage), low-voltage option 12-36 Vdc
- Environmental Conditions: 0°C to 50°C, 90% RH non-condensing
- Certifications: UL, cUL, CE
- Isolation: 2300 Vac dielectric withstand for inputs/outputs
- Dimensions: Approximately 45 mm height, 48 mm width, 127 mm depth, DIN rail compatible
- Additional features: remote setpoint, high-high/low-low alarms, password protection, firmware updates via USB

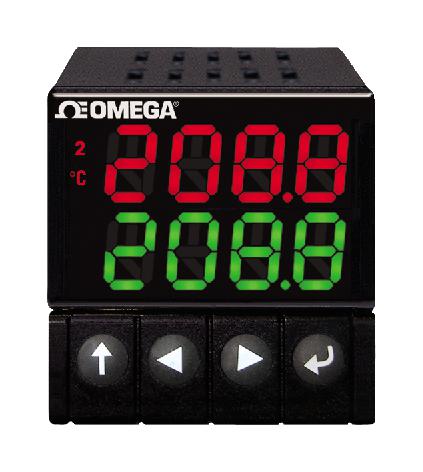

Buy the Buy Industry Leading Temperature Controller Part Number CN16PT304 Online
Enhance your industrial automation setup with this advanced temperature and process controller. Featuring versatile inputs including thermocouples, RTDs, thermistors, and process signals, it offers high-precision measurement, extensive ramp and soak programming, and reliable control modes for temperature regulation. With a bright, easy-to-read display and USB/ethernet communications, it simplifies setup and integration into existing systems. Ideal for laboratory research, manufacturing, and process automation, this controller ensures accurate, responsive, and flexible control performance in demanding industrial environments.
Buy Industry Leading Temperature Controller CN16PT304 now and experience unmatched reliability and versatile process control suitable for demanding environments.
Frequently Asked Questions
Where can I buy OMEGA CN16PT304?
You can click on the BUY or RFQ button to purchase CN16PT304 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN16PT304?
You can download the CN16PT304 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN16PT304?
OMEGA
