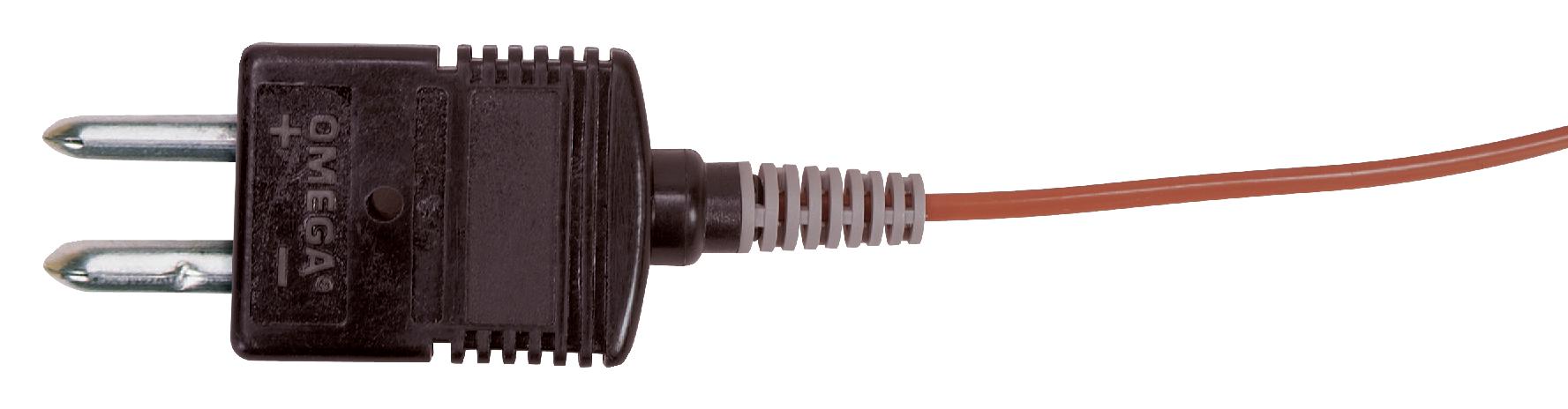

OMEGA 5LRTCTTJ2436 Insulated Thermocouple Connector
OMEGA's 5LRTC series thermocouples provide a convenient and reliable solution for temperature sensing in a wide range of industrial applications. Available in 5-packs, these thermocouples offer NIST calibration options and a selection of insulation materials, including PFA, Glass Braid, and Kapton, each suited for different temperature ranges. The miniature size connectors and spool caddy options enhance usability and storage. With lengths available from 1 to 2 meters, these thermocouples are versatile for various setups, ensuring accurate and dependable temperature monitoring in demanding environments.
OMEGA 5LRTCTTJ2436 Insulated Thermocouple Connector Specifications:
- Available: From Stock in Convenient 5-Packs
- NIST Calibration: Available
- PFA Insulated Wire Max Service Temp: 260°C (500°F)
- Glass Braid Insulated Wire Max Service Temp: 480°C (900°F)
- Kapton Insulation Max Service Temp: 260°C (500°F)
- Connector Body Max Service Temp: 220°C (425°F)
- Available Lengths: 1 and 2 m (40 and 80")
- AWG: 20, 24, 30, 36, 40
- Diameter (mm): 0.81, 0.51, 0.25, 0.13, 0.076
- Insulation Types: Glass Braid, PFA, Kapton
Buy the 5LRTC-TT-J-24-36 OMEGA Insulated Thermocouple Connector | myMectronic
Purchase OMEGA 5LRTC thermocouples securely online for reliable temperature measurement solutions.
Buy Now
Frequently Asked Questions
Where can I buy OMEGA 5LRTCTTJ2436?
You can click on the BUY or RFQ button to purchase 5LRTCTTJ2436 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part 5LRTCTTJ2436?
You can download the 5LRTCTTJ2436 datasheet or visit the OMEGA website for support.
Who is the manufacturer of 5LRTCTTJ2436?
OMEGA
