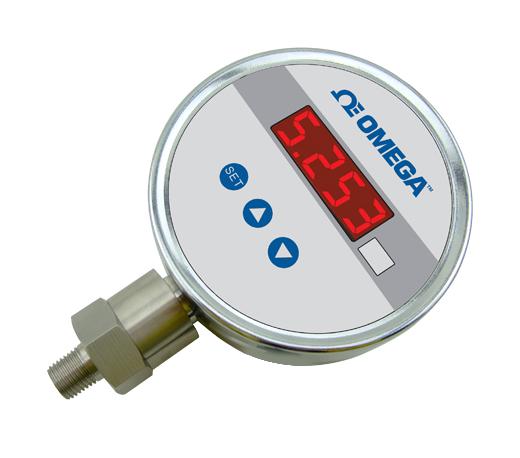

OMEGA DPG10120KG Digital Pressure Gauge
The digital pressure gauge DPG101 is an electronic device used to monitor hydraulic pressure in various industries such as hydro power, water, petroleum, and chemicals. It features a high-resolution 4-digit LED display, stainless steel construction, and parameter correction function for zero and error adjustment. The gauge measures pressure from -0.1 to 100 MPa with an accuracy of ±0.25% for gauge pressure or ±5% FS for other ranges. It operates on 220VAC power, withstands up to 200% overload, and is suitable for pipe installation with a 1/4 NPT male thread and SS316 material. The device is vibration resistant, stable over time, and designed for precise hydraulic pressure monitoring.
OMEGA DPG10120KG Digital Pressure Gauge Specifications:
- Measuring Range: -0.1 to 100 MPa
- Accuracy: ±0.25% for gauge pressure, ±5% FS for other ranges
- Overload Pressure: 150% to 200%
- Power Supply: 220VAC
- Display: 4-digit LED
- Material: Stainless steel
- Thread Size: 1/4 NPT Male
- Fluid Temp: 40°C to 150°C
- Operating Temp: -30°C to 80°C
- Pressure Type: Gauge
- Dimensions: Suitable for hydraulic pipe installation
- Certifications: IP rating and high vibration resistance
Buy the Omega DPG101 Digital Pressure Gauge – Reliable Hydraulic Pressure Monitoring
Order the Omega DPG101 digital pressure gauge online today to ensure accurate hydraulic system monitoring. With a 4-digit LED display, stainless steel construction, and adjustable parameters, it offers reliable performance in demanding industrial environments. Designed for pipe installation with a 1/4 NPT thread, it supports a measuring range from -0.1 to 100 MPa and features overload protection up to 200%. Easy to operate, this pressure gauge ensures precise, consistent readings whether used in chemical, water, or petroleum industries. Purchase now for dependable pressure measurement.
Get Omega DPG101 today—built for precise hydraulic pressure monitoring with high accuracy and stainless steel durability.
Frequently Asked Questions
Where can I buy OMEGA DPG10120KG?
You can click on the BUY or RFQ button to purchase DPG10120KG from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG10120KG?
You can download the DPG10120KG datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG10120KG?
OMEGA
