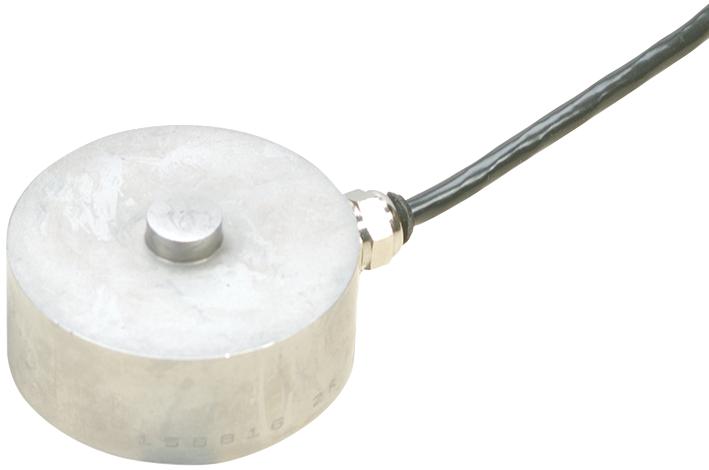

OMEGA LC3055K Miniature Compression Load Cell
The LC305 series miniature compression load cell features stainless steel construction with a 2-inch diameter, mounting holes, and a rugged, heavy-duty design. Suitable for industrial weighing, test benches, and prototype testing, it offers high accuracy with 0.25% interchangeability. Available in cable and connector styles, the load cells support various ranges from 0-25 to 0-20,000 pounds. Equipped with a built-in load button for easy installation, these load cells provide reliable, NIST-traceable calibration with 59 kOhm shunt calibration data and robust construction for demanding applications.
OMEGA LC3055K Miniature Compression Load Cell Specifications:
- Material: Stainless steel
- Diameter: 2 inches
- Calibration: 5-Point NIST Traceable with 59 kOhm Shunt Cal Data
- Interchangeability: 0.25%
- Connection Types: Cable style with 3 m (10 ft) cable or connector style with mating connector sold separately
- Available Ranges: 25 to 20,000 lbs (11.3 to 9072 kg)
- Built-in load button for ease of installation
- Design: Heavy-duty, rugged for industrial and laboratory applications
- Mounting Holes: Yes
- Models: LC305 (Cable style), LC315 (Connector style)
Buy the Newport LC3055K – Reliable Compression Load Cell for Industrial Applications
Order the Newport LC3055K miniature compression load cell online today to benefit from high accuracy, durable stainless steel design, and easy mounting. Perfect for industrial weighing, test benches, and prototype applications, the load cell offers varying ranges from 25 to 20,000 pounds, ensuring flexibility for your measuring needs. With built-in load buttons and robust construction, purchasing online guarantees quick delivery and expert support. Enhance your industrial and laboratory testing with this reliable, heavy-duty load cell designed for precision and long-term use.
Buy Newport LC3055K now and experience unmatched reliability and precision with its rugged stainless steel construction and easy installation options.
Frequently Asked Questions
Where can I buy OMEGA LC3055K?
You can click on the BUY or RFQ button to purchase LC3055K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC3055K?
You can download the LC3055K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC3055K?
OMEGA
