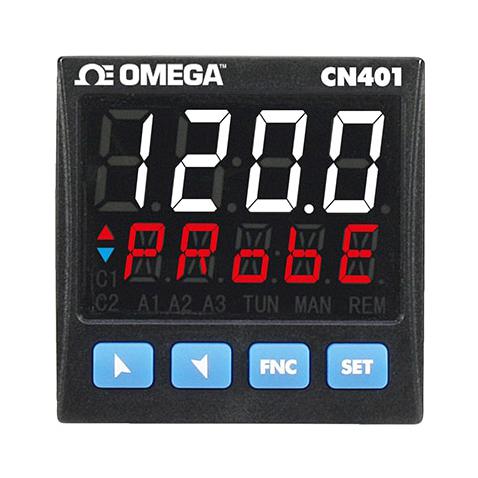

OMEGA CN40111445 PID Controller
The CN400 Series PID Process Controller offers a 1/16 DIN dual display with configurable inputs for thermocouples, RTDs, and process signals. It supports heating and cooling control with advanced algorithms like P.I.D. and auto/manual tuning. Features include programmable sampling time up to 2.1 ms, various relay and SSR outputs, serial RS485 communication with Modbus RTU, NFC/RFID programming, and a robust IP65 front panel. This versatile controller is suitable for industrial temperature and process control applications, with options for dual analog inputs and comprehensive digital inputs and outputs for precise automation tasks.
OMEGA CN40111445 PID Controller Specifications:
- Display: 0.5 inch white digits, 0.3 inch red digits
- Box Dimensions: 48 x 48 x 105 mm
- Material: PC UL94V2 self-extinguishing front panel, IP65 sealing
- Power Supply: 24-230 VAC/DC +15%, 8W power consumption
- Inputs: Single or dual configurable thermocouple, RTD, voltage, current, potentiometer
- Sampling Time: Programmable up to 2.1 ms (470 samples/sec)
- Outputs: 2/3 relays 2A/250V, 2 SSRs 12/24V DC 30mA, 1/2 analog 4-20mA/0-10V
- Serial Communication: RS485 Modbus RTU (up to 115200 baud)
- Operating Temperature: 0°C to 45°C, Humidity: 35-95%
- NFC/RFID programming with dedicated app for Android devices
- Sealing: Front panel IP65, box IP20
- Weight: Approximately 185 grams
Buy the OMEGA CN40111445 – Reliable PID Controller for Industrial Applications
Discover the OMEGA CN40111445 PID Controller, featuring dual display, configurable inputs, and NFC programming. Ideal for industrial temperature and process control, it offers versatile outputs, serial communication, and robust construction with IP65 sealing. Its advanced algorithms, auto/manual tuning, and remote setup options ensure precise control. Suitable for various automation applications, this controller enhances efficiency and reliability across industrial environments. Purchase online to benefit from fast setup, comprehensive features, and reliable operation that meets demanding industrial standards.
Buy OMEGA CN40111445 now and experience unmatched reliability and performance for precise temperature control and industrial automation.
