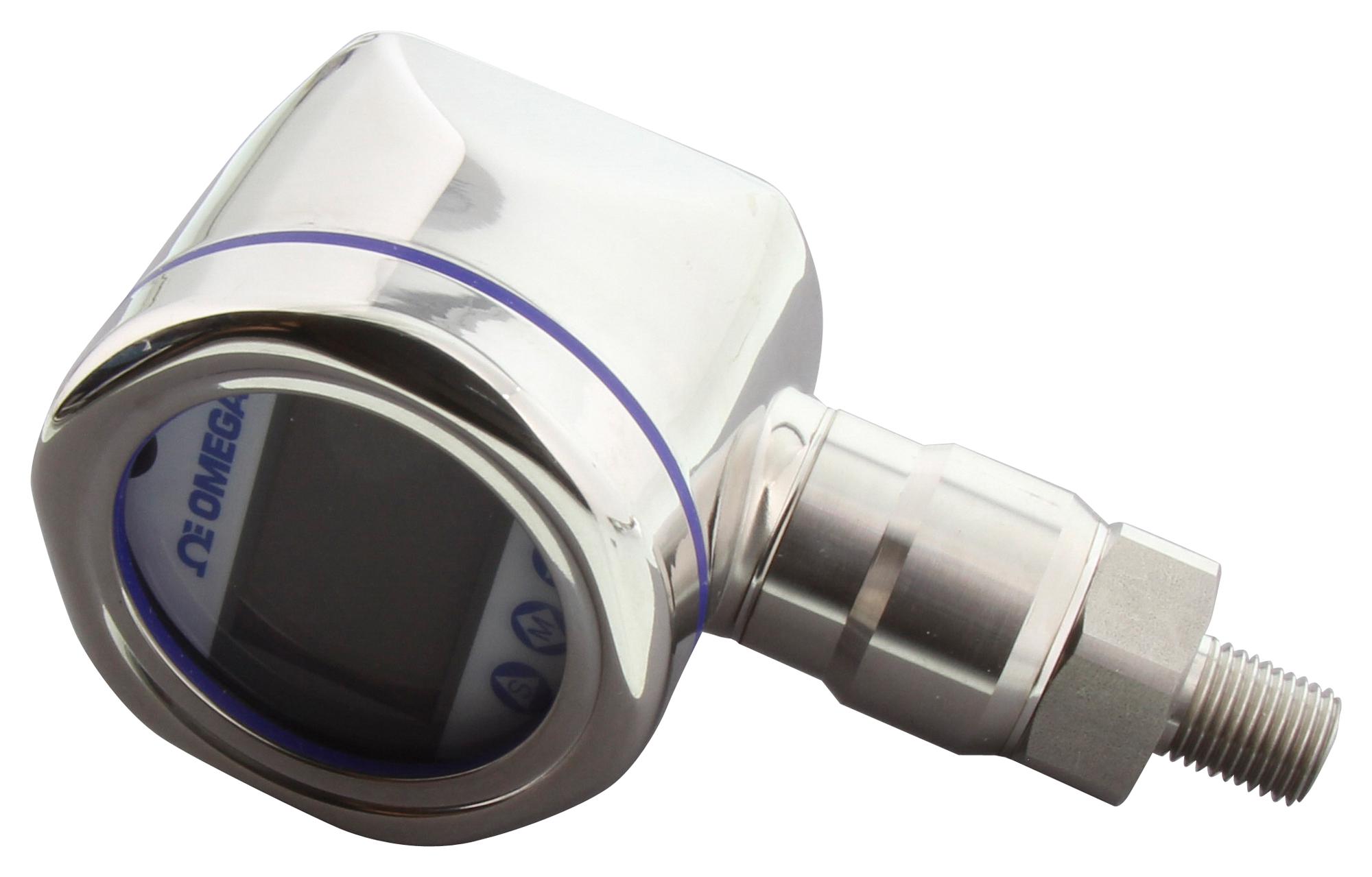

OMEGA PX3005003GI Pressure Transmitter
The PX3005 is an advanced, compact pressure transmitter with a display, designed for industrial applications including process automation, hydraulic systems, and pumps. It features a rugged 316 stainless-steel enclosure rated IP67 for washdown environments, and a 5-digit backlit LCD for clear process variable readings. The device offers high accuracy of ±0.2% URL, and adjustable rangeability from -100% to 100% FS. Configurable for various pressure ranges up to 15,000 psi, it supports multiple units, tare functions, and re-ranging capabilities, making it ideal for precise, reliable pressure monitoring.
OMEGA PX3005003GI Pressure Transmitter Specifications:
- Accuracy: +/- 0.2% URL
- Environmental Rating: IP67
- Wetted Parts: 316 SS
- Display: 5-digit backlit LCD
- Supply Voltage: 10.5 to 55VDC
- Power Consumption: 500mW (20.8mA @ 24VDC)
- Operating Temperature: -20 to 70°C
- Media Temperature: -40 to 120°C
- Media Compatibility: Fluids and gases with 316 SS and FKM
- Process Connection: 1/4-inch 18 NPT (M) 316 SS
- Electrical Connection: 4-pin male M12
- Response Time: 200 ms
- Vibration Resistance: Up to 20g (5-2000Hz)
- Mounting Position: Any, with calibration correction if needed
- Turndown Ratio: Up to 2 (based on range and span)
- Over Range Limit: Up to 15000 psi for specific models
- Materials: Wetted parts are 316 stainless steel, housing is durable and IP67 rated
Buy the OMEGA PX3005 Reliable Pressure Transmitter for Industrial Applications
Discover the OMEGA PX3005 pressure transmitter, engineered for industrial automation and hydraulic systems. Its rugged stainless steel enclosure ensures durability and IP67 protection against washdown environments. Equipped with a high-contrast LCD display, this device offers precise pressure measurements up to 15,000 psi, with configurable units and re-ranging features. Ideal for process automation, pumps, compressors, and tank level monitoring, it combines robust construction with easy setup, enabling reliable operation and long-term stability for critical applications. Buy online now for dependable pressure monitoring.
Order your OMEGA PX3005 pressure transmitter today and enjoy accurate, reliable pressure measurement in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA PX3005003GI?
You can click on the BUY or RFQ button to purchase PX3005003GI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX3005003GI?
You can download the PX3005003GI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX3005003GI?
OMEGA
