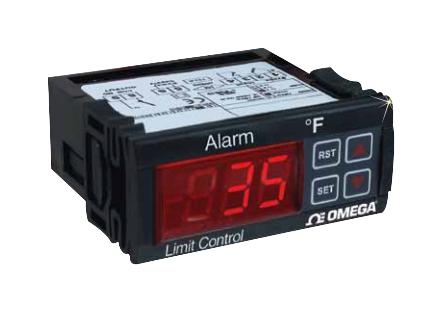

OMEGA CN707 Temperature Limit Controller
The CN700 Series limit controller with audible buzzer is a high-quality device designed for precise temperature monitoring and control in industrial settings. It features a bright red 3-digit LED display, thermocouple inputs for Type J, K, or S sensors, and a 16 A relay output for controlling devices. With options for automatic or manual reset, built-in or external reset, and FM approval, this controller ensures reliable operation, easy programming, and safety with an IP64 rating. It is suitable for high temperature applications up to 999°C with a user-friendly panel interface.
OMEGA CN707 Temperature Limit Controller Specifications:
- Temperature Range: TIC Type J: 0 to 700°C (32 to 999°F), TIC Type K or S: 0 to 999°C (32 to 999°F)
- Input: Type J, K or S thermocouple
- Output: 16 A SPDT relay @ 250 Vac resistive
- Horsepower Rating: 1 HP
- Control Type: ON/OFF manual/automatic reset
- Power Requirements: 115 Vac, 230 Vac, 12 or 24 Vac/Vdc
- Power Consumption: 4 VA
- Accuracy: +1% FS
- Display: 3-digit, red, 12.7 mm (4") digits, plus sign
- Display Update Rate: Selectable down to 1 second
- Resolution: 1°
- Memory Backup: Nonvolatile memory
- Ambient Operating Temperature: 0 to 65°C (32 to 150°F)
- Storage Temperature: -20 to 80°C (-4 to 176°F)
- Weight: 65 g (2.3 oz)
- Panel Cutout: 71 x 29 mm (2%8e x 1%")
- Front Panel Rating: IP64
Buy the Acme CN700U2013 Reliable Temperature Limit Controller for Industrial Applications
Order the Acme CN700 series temperature limit controller online now to enhance your industrial process safety and control. Featuring a bright red LED display, thermocouple inputs, and a robust 16 A relay output, this device provides real-time temperature monitoring with user-friendly programming options. It includes a built-in or external reset, audible alarm, and high accuracy. Proven FM approved for safety, it suits applications up to 999°C, ensuring durability under harsh industrial conditions. Easy to install and operate, it offers an excellent balance of performance and value, perfect for demanding environments.
Get Acme CN700 series limit controller today—built for precise temperature monitoring, reliable operation, and long-lasting durability.
