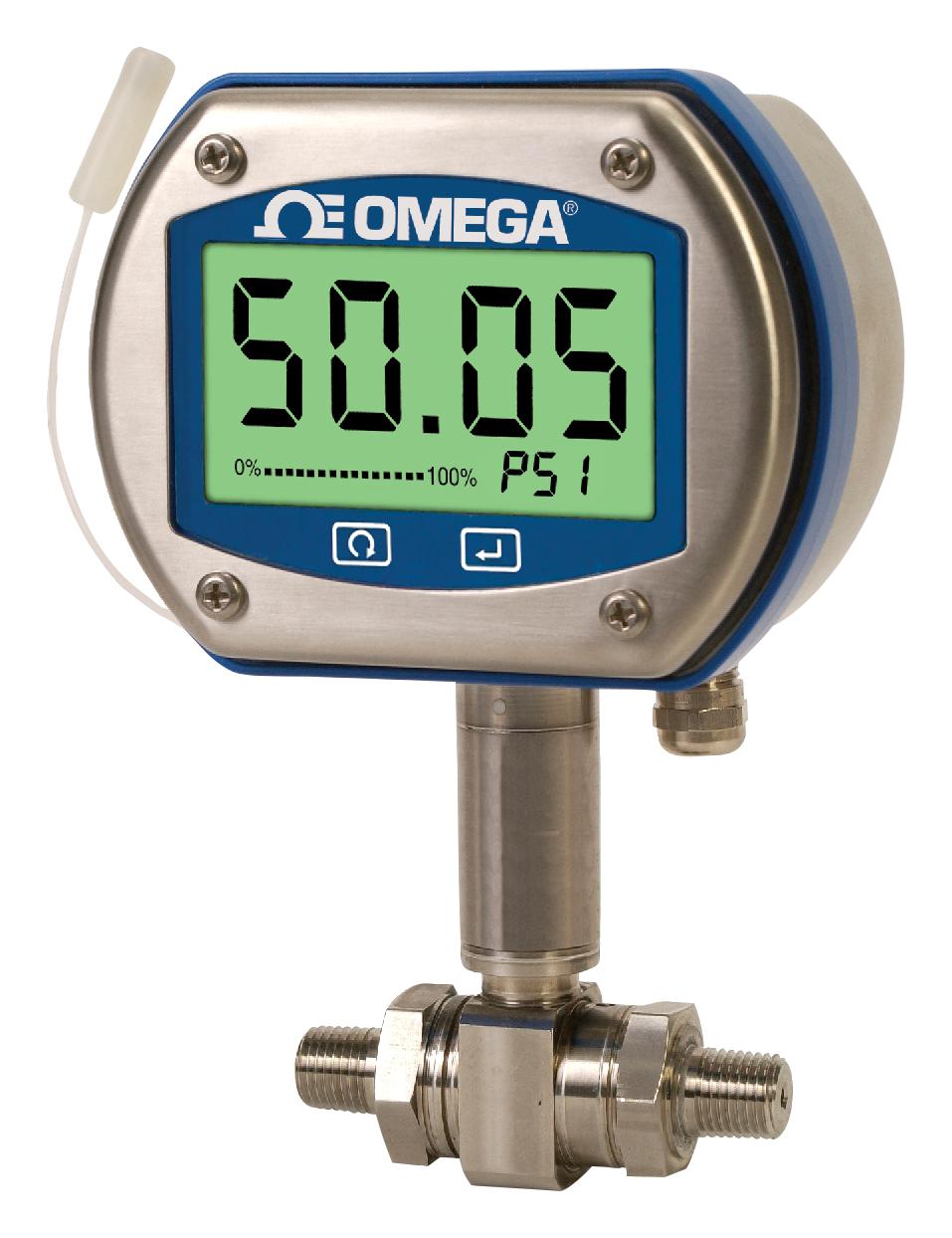

OMEGA DPG409030DWU Differential Pressure Gauge
The DPG409 digital differential pressure gauge is a rugged, high-accuracy instrument featuring a stainless steel enclosure and wetted parts suited for washdown and marine environments. It offers ranges from 0-10 inH2O up to 0-1000 psi, with ±0.08% accuracy and NIST traceable calibration. Equipped with a backlit LCD, user-selectable analog outputs (0-5 V, 0-10 V, 4-20 mA), and optional wireless transmission, it ensures reliable pressure measurement in industrial and harsh conditions. The device includes software for setup and calibration, has a long battery life, and meets CE standards for electrical safety.
OMEGA DPG409030DWU Differential Pressure Gauge Specifications:
- Measurement Ranges: 0-10 inH2O to 0-1000 psi (0-25 mb to 70 bar)
- Accuracy (Combined Linearity, Hysteresis, Repeatability): ±0.08%
- Display: 25 mm (1") backlit LCD with 4 digits, user-selectable sample rate from 0.38 to 30 sec
- Materials: 316 Stainless Steel enclosure, wetted parts made of 316L Stainless Steel
- Power Source: 3.6V lithium C cell battery, up to 9 months life, with optional wireless battery (model no. BATT-C-3.6V)
- Environmental Rating: NEMA 4X (IP65), Weatherproof
- Analog Outputs: User selectable 0-5 Vdc, 0-10 Vdc, 4-20 mA (external 24 Vdc power supply required)
- Calibration: 5-Point NIST traceable, software calibration, zero and span adjustment
- Operating Temperature: -18°C to 66°C (0°F to 150°F)
- Storage Temperature: -40°C to 82°C (-40°F to 180°F)
- Pressure Connections: 4-18 NPT male, rated for a maximum of 500 psi static pressure
- Certifications: CE-approved, meets EN61326-1:2006
- Dimensions (Display): 115 D x 89 W x 74 H mm, Sensor length 72-89 mm, width 80 mm
- Weight: approximately 1 kg (2.2 lb)
Buy the Buy Omega DPG409 Differential Pressure Part Number DPG409030DWU Online
Purchase the Omega DPG409 digital differential pressure gauge online to benefit from its high accuracy, stainless steel rugged enclosure, versatile analog outputs, and optional wireless transmission. Ideal for washdown, marine, and industrial environments, this device features a backlit LCD display, NIST traceable calibration, and a long-lasting lithium battery. Its wide measurement range from 0-10 inH2O to 1000 psi, combined with CE compliance and robust construction, ensures dependable pressure monitoring in harsh conditions. Order now for fast delivery and reliable performance.
Order your Omega Series DPG409 0-70 psi differential pressure gauge today and ensure precise, durable pressure measurement for demanding industrial applications.
Frequently Asked Questions
Where can I buy OMEGA DPG409030DWU?
You can click on the BUY or RFQ button to purchase DPG409030DWU from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DPG409030DWU?
You can download the DPG409030DWU datasheet or visit the OMEGA website for support.
Who is the manufacturer of DPG409030DWU?
OMEGA
