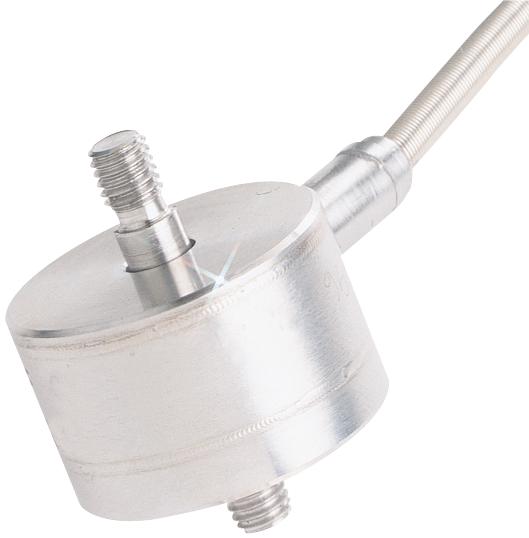

OMEGA LCFD250 Subminiature Load Cell
The LCFD250 is a high-accuracy subminiature load cell designed for industrial tension and compression measurements. Made of stainless steel, it provides precise readings with excellent long-term stability. Suitable for applications requiring small load measurements from 25 to 250 lbs or 10 to 1000 N, it features a compact design, IP65 protection, and a 5 Vdc excitation for lower capacity models. Its robust internal construction ensures minimal off-axis effects, making it ideal for demanding environments where reliability and accuracy are essential.
OMEGA LCFD250 Subminiature Load Cell Specifications:
- Capacity: 25 to 250 lbs / 10 to 1000 N
- Material: Stainless steel
- Excitation: 10 Ib/50 N: 5 Vdc, 225 Ib/100 N: 10 Vdc
- Output: 2 mV/V (nominal for 25 Ib/20 N), 1.5 mV/V (for 2.2 Ib/10 N)
- Accuracy: +0.15% FSO (100 Ib/500 N), combined linearity and hysteresis
- Temperature Range: -54 to 121°C (-65 to 250°F)
- Compensated Temperature Range: 16 to 71°C (60 to 160°F)
- Thermal Effects: Span and Zero: +0.009% FSO/°C
- Overload Protection: 150%, Ultimate Overload: 300%
- Bridge Resistance: 350 Ω minimum
- Protection Class: IP65
- Electrical Connection: 1.5 m (5') 4-conductor shielded PTFE cable
- Dimensions: Variable load capacity, compact size with threaded load attachment studs
Buy the High-Accuracy Load Cell Series LCFD: LCFD250
Order the LCFD250 high-accuracy stainless steel load cell online today to ensure reliable tension and compression measurements. Featuring a compact design, IP65 protection, and precise output, this load cell is ideal for industrial applications requiring durable and stable measurement solutions. Its robust construction minimizes effects of off-axis loads, making it suitable for demanding environments. Easy to install with threaded load attachment studs, the LCFD250 provides consistent performance with a simple connection, ensuring your measurement tasks are accurate and efficient every time.
Buy High-Accuracy Load Cell LCFD250 now and experience unmatched reliability, precision in tension and compression measurements, and robust stainless steel construction.
