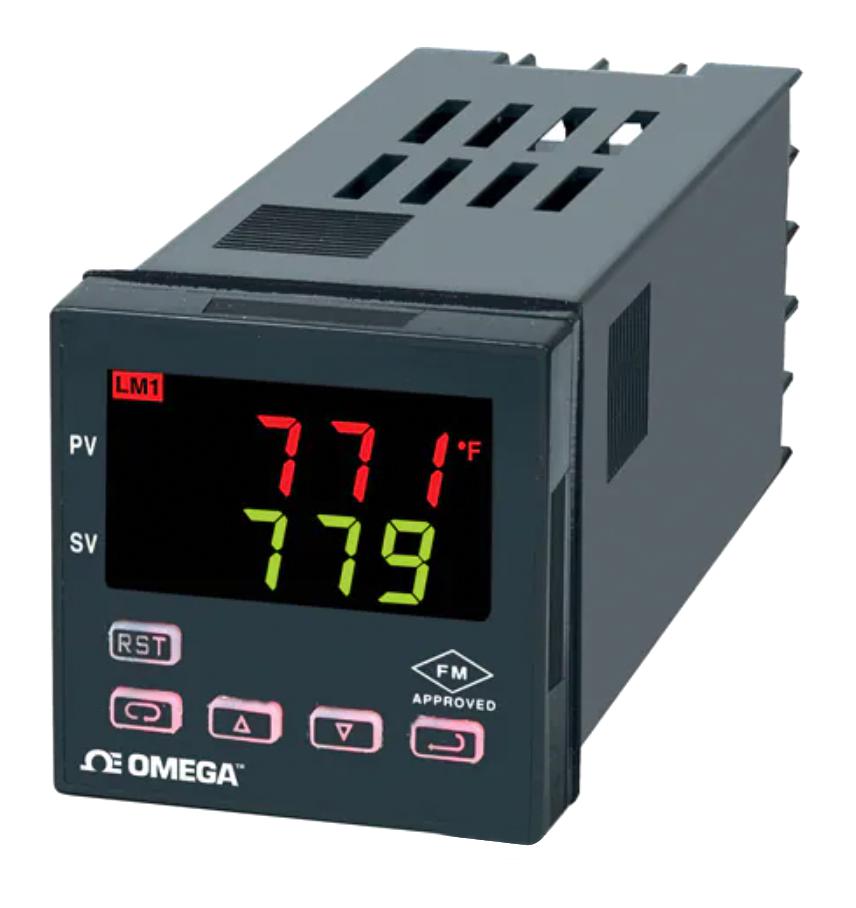

OMEGA CN7434 Temperature Limit Controller
The CN7400 Series temperature and process limit controllers are FM-approved, offering universal inputs including thermocouples and RTDs, with remote reset capability. They feature dual display, adjustable input types, and relays for precise control. Inputs cover a wide temperature range, from -350°F to 4208°F depending on type, and include voltage and current signals. These controllers operate on 100-240V AC or 132-240V DC, have accuracy of ±0.25%, and are suitable for industrial temperature regulation with secure relay outputs, all in a compact panel-mount design.
OMEGA CN7434 Temperature Limit Controller Specifications:
- Input Types: 10 thermocouples, 4 RTDs, DC voltage, DC current
- Thermocouple Range: -350°F to 3308°F depending on type
- RTD Range: -200°C to 875°C (RTDs and thermocouples)
- Display: Two 4-digit, 7-segment LEDs, 7.62 mm H
- Accuracy: ±0.25% of span, plus 1 digit
- Supply Voltage: 100-240 Vac or 132-240 Vdc (nominal)
- Power Consumption: 5 VA max
- Operating Temperature: -10°C to 55°C
- Relay Control: SPST, 3 A @ 240 Vac resistive; 1.5 A @ 240 Vac inductive
- Weight: 227 g
- Panel Cut-Out: 45 mm diameter
- Panel Depth: 133 mm
- Maximum Panel Thickness: 6.35 mm
Buy the Omega CN7400 U–Reliable Temperature Limit Controllers for Industrial Applications
Discover the Omega CN7400 series temperature and process limit controllers, engineered for accuracy and reliability in industrial environments. Featuring universal inputs, dual display, remote reset, and versatile relay outputs, these controllers provide seamless temperature management. Operating on 100-240V AC or 132-240V DC, they have an accuracy of ±0.25% and are suitable for diverse thermocouples, RTDs, voltage, and current signals. Compact and panel-mountable, they deliver secure control and easy installation for process automation and industrial temperature regulation.
Get Omega CN7400 controllers today—built for precision and long-lasting durability in industrial temperature regulation.
Frequently Asked Questions
Where can I buy OMEGA CN7434?
You can click on the BUY or RFQ button to purchase CN7434 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN7434?
You can download the CN7434 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN7434?
OMEGA
