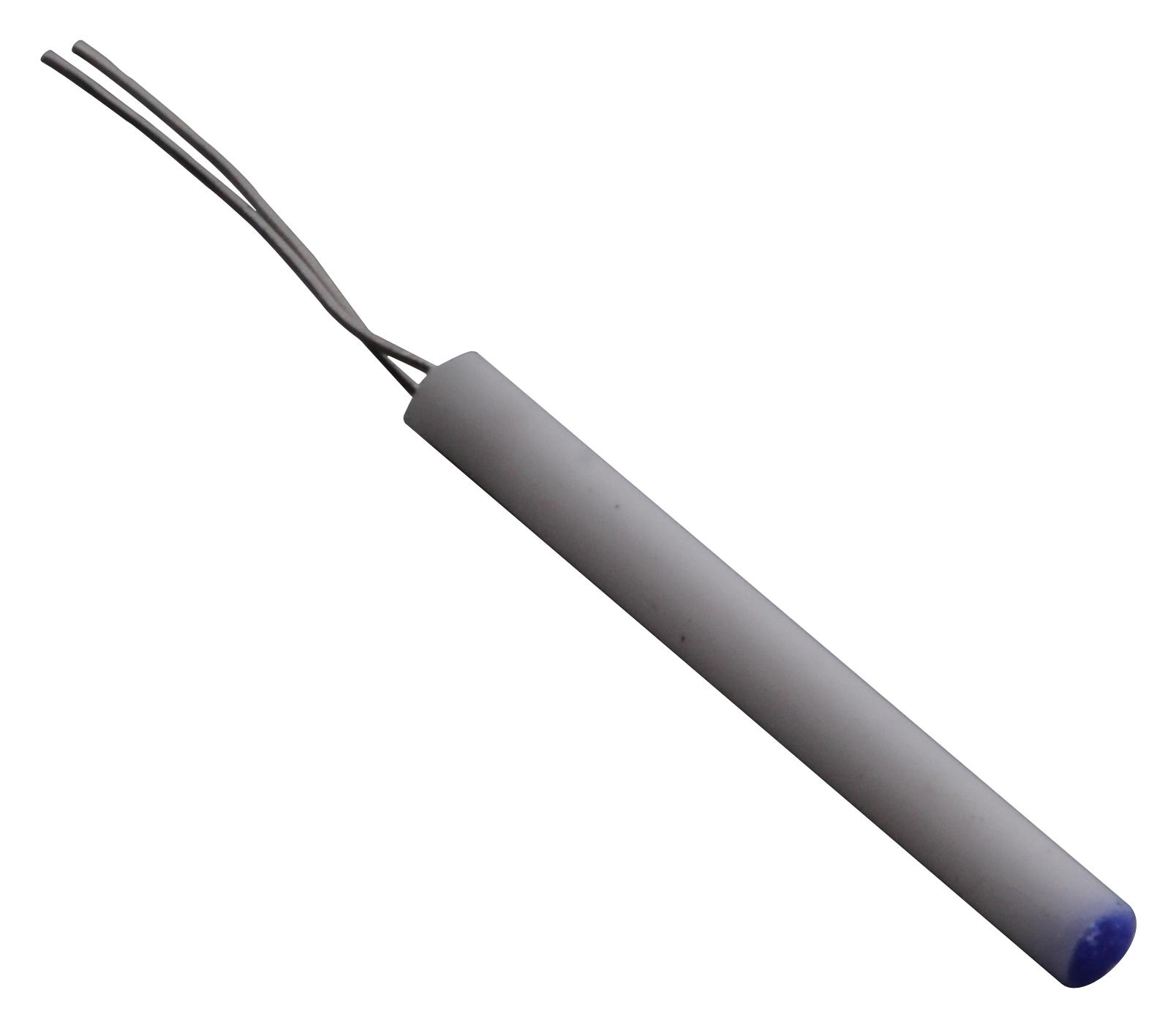

OMEGA 1PT100KN1515CLA Platinum RTD Element
The OMEGA 1PT100KN1515CLA is a ceramic wire-wound platinum Resistance Temperature Detector (RTD) element, classified as Class A according to IEC751 standards. This RTD is engineered for demanding applications requiring exceptional temperature stability and resilience to thermal shock. Its construction utilizes a platinum wire wound onto a ceramic core, ensuring minimal deviation from the standard IEC751 characteristic curve across a wide temperature range (-200°C to 600°C). The small diameter tolerances of the sensor body facilitate easy installation within protective tubes. Common applications include chemical processing plants, power generation facilities, and analytical instrumentation where precise and reliable temperature measurement is critical. The element offers a nominal resistance of 100 ohms and is designed for robust performance in challenging industrial environments.
OMEGA 1PT100KN1515CLA Platinum RTD Element Specifications:
- Dimensions: 1.5 mm
- Nominal Resistance: 1 x 100 Ohms
- Temperature Range: -200 to 600 °C
- Self Heating Error: 0.08 C/mW
- Response Time (Flowing Air): 0.2 seconds
- Response Time (Flowing Water): 5 seconds
- Lead Length: 10 mm
