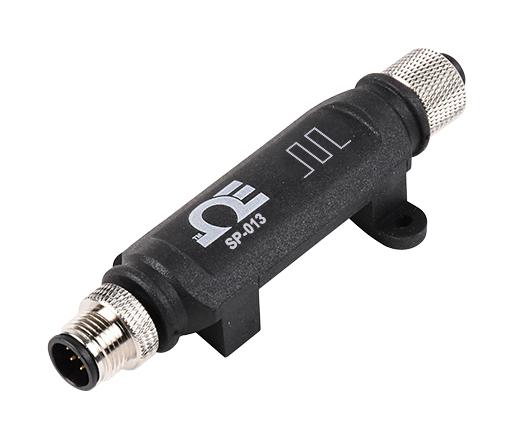

OMEGA SP0131 Digital Interface Smart Probe
The Layer N SP-013 Digital Interface Smart Probe simplifies integration of digital pulse inputs within the Layer N Ecosystem. Featuring M12 connectors, it supports pulse counting, pulse duty cycle, and pulse delay monitoring, with configurable digital I/O pins for driving relays, alarms, or sensing dry contacts. With data logging, alarm functionality, and plug-and-play connectivity, it enhances sensor health monitoring and control. Compatible with Layer N Smart Interfaces and cloud monitoring, the SP-013 provides advanced decision-making capabilities and easy configuration via SYNC software, making it ideal for industrial automation and data acquisition applications.
OMEGA SP0131 Digital Interface Smart Probe Specifications:
- Input Power: 2.8 V to 3.3 V
- Digital Inputs: Vinsghtnesnos = 2.2 V, Vintowrneesnots = 0-3 V, Vinmax = 30 V
- Digital Outputs: 2x Open Drain, 100 mA Max
- Operating Temperature: -40 to 85°C (-40 to 185°F)
- Mechanical Dimensions: 22.1mm W x 96.7mm L (0.87" x 3.80") not including mounting tabs
- Pin Layout: Pin 1: 3.3V Power, Pin 2: Pulse Input A, Pin 3: GND, Pin 4: SDA, Pin 5: Shield Ground, Pin 6: DIO1, Pin 7: GND, Pin 8: 3VDD
- Certifications: CE, EMC, 2014/30/EU, LVD 2014/35/EU
- Environmental Rating: IP67 when mated
Buy the Omega Series SP-013 Digital Interface: SP0131
Order the Omega SP-013 Digital Interface Smart Probe now to enhance your industrial automation systems. Featuring configurable digital I/O, data logging, alarms, and cloud connectivity, this smart probe ensures reliable pulse input monitoring. Its modular design with M12 connectors allows flexible configurations for controlling relays, sensing dry contacts, or integrating into complex automation setups. Simple to configure via SYNC software and compatible with Layer N Cloud, it offers advanced decision-making abilities and seamless data management to optimize your operations.
Get Omega SP-013 digital interface smart probe today—built for precise pulse monitoring and robust industrial control.
