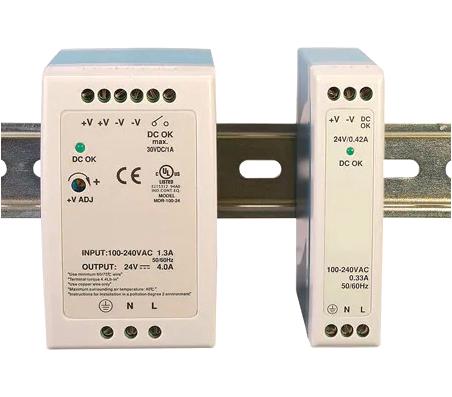

OMEGA SLPSS6048 Industrial Power Supply
The SL-PS series of power supplies provides a reliable DC power source suitable for industrial control systems. Designed for efficiency and space-saving, these power supplies are ideal for controlling PLCs, sensors, and switches. They feature short-circuit, over-load, and over-voltage protection, and have undergone a 100% full load burn-in test to ensure durability. The units are UL/CUL listed, CE marked, and compliant with NEC class 2 standards. They support universal AC inputs, include an LED indicator for power status, and can be installed on 35 x 7.5mm or 35 x 15mm DIN rails. Built-in DC OK signals or relay contacts facilitate system monitoring.
OMEGA SLPSS6048 Industrial Power Supply Specifications:
- Working Temperature: -20 to 70°C
- Working Humidity: 20 to 90% RH non-condensing
- Dimensions: 90 H x 100 mm D (3.564 x 3.94 inches), width varies by model
- Output Voltage: 24 Vdc
- Ripple and Noise: 150 mVp-p
- Voltage Tolerance: +1%
- Line and Load Regulation: +1%
- Input Voltage: 85 to 264 Vac, 47 to 63 Hz, 120 to 370 Vdc
- Inrush Current: SL-PS-S1024: 35 A/115 Vac, 70 A/230 Vac; SL-PS-S2024: 20 A/115 Vac, 40 A/230 Vac; others: 30-60 A depending on model
- Protection: Short circuit, Overload (105-160%), Overvoltage
- Efficiency: 84-88%
- Safety Standards: UL508, EN60950-1, NEC Class 2 compliant
- Isolation Voltage: Input-Output 3k Vac; Input-FG 1.5k Vac; Output-FG 0.5k Vac
- Insulation Resistance: 100 MΩ / 500 Vdc
- EMI Compliance: EN55011, EN55022, EN61204-3 Class B
- Harmonic Current: EN61000-3-2, 3
- EMS Immunity: EN61000-4-2, 3, 4, 5, 6, 8, 11, EN50204, EN55024, EN61000-6-1, EN61204-3
- Mounting: DIN rail 35 x 7.5mm or 35 x 15mm
Buy the Buy SEAR Power Supply Part Number SLPSS6048 Online
Enhance your industrial control system with this high-quality power supply from SEAR. Featuring a 24 Vdc output, universal AC input, and built-in protections, it ensures reliable operation for PLCs, sensors, and switches. Compact and easy to install on DIN rails, this power supply offers excellent efficiency and safety standards like UL508, CE, and NEC Class 2. Perfect for demanding industrial environments, it provides peace of mind with full load burn-in testing and monitoring signals for system status.
Buy SEAR SLPSS6048 power supply now and experience reliable performance, space-saving design, and comprehensive protections for industrial automation.
