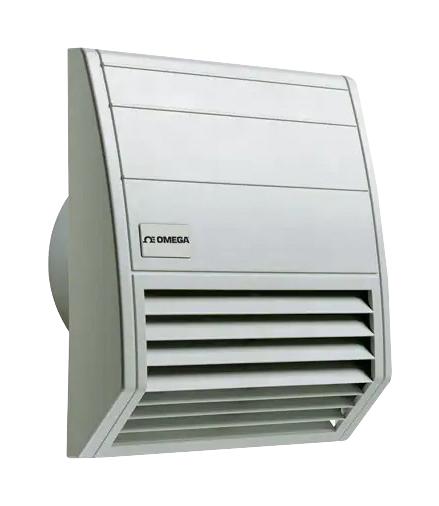

OMEGA FF01803000 Industrial Cooling Fan
The filter fans are designed for large enclosures, providing very low noise operation and minimal depth for easy installation. They include a self-adhesive sealing frame that prevents dust and water ingress, with effective intake and exhaust hoods that block water and dust infiltration, ensuring quiet operation. The axial fans feature ball bearings, aluminum frames, and plastic impellers rated UL94V-0, with an operational lifespan of at least 50,000 hours. They are suitable for cooling large industrial enclosures, with options for integrated exhaust filters, high airflow, and corrosion-resistant materials.
OMEGA FF01803000 Industrial Cooling Fan Specifications:
- Air Flow Free Blowing: FF01803000: 300 m³/h (176 cfm), FF01805001: 550 m³/h (323 cfm)
- Air Flow with Exhaust Filter: FF01803000: 230 m³/h (135 cfm), FF01805001: 300 m³/h (176 cfm)
- Current Consumption: FF01803000: 700 mA, FF01805001: 780 mA
- Power Consumption: FF01803000: 60 W, FF01805001: 85 W
- Noise Level at 1 m: FF01803000: 53 dB (A), FF01805001: 65 dB (A)
- Mounting Depth: FF01803000: 65 mm (2.6"), FF01805001: 107 mm (4.2")
- Enclosure Cut-Out: 176 x 176 mm +0.4" (6.9 x 6.9")
- Weight: FF01803000: 3.3 kg (7.3 lb), FF01805001: 2.7 kg (5.9 lb)
- Fan Frame: Aluminum, plastic impeller UL94V-0, rated for at least 50,000 hours
- Exhaust Filter: 350 g/m², 94% filtration efficiency for particles less than 10 µm, G4 filter class, mount depth 22 mm (0.9"), cut-out 250 x 250 mm +0.4"
Buy the GlobalTech FF01803000 – Reliable Cooling Fans for Industrial Applications
Experience enhanced cooling performance with our industrial-grade filter fans designed for large enclosures. Easy to install with dust and water protection, these fans deliver high airflow, low noise, and long-lasting durability. Ideal for industrial automation, manufacturing, and electronics cooling, they feature UL94V-0 rated materials and efficient filters that improve air quality. Protect sensitive equipment and ensure reliable operation in demanding environments. Order online now to benefit from fast delivery and competitive pricing on these versatile, maintenance-friendly cooling solutions.
Order your GlobalTech SeriesFF01803000 filter fan today and enhance your industrial cooling with dependable low-noise operation and robust design.
