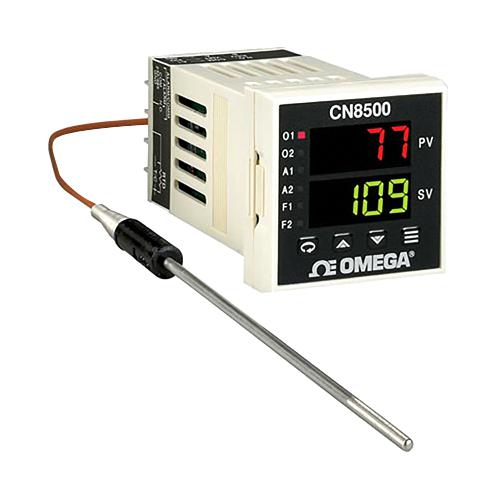

OMEGA CN8501TCR1 Digital Temperature Controller
The CN8501TCR1 is a versatile and user-friendly digital temperature controller designed for industrial applications. Featuring a NEMA 4X (IP65) front panel and a universal power supply accepting 103 to 253 Vac or 103 to 330 Vdc, it offers precise temperature regulation with processing and setpoint displays. It supports various control algorithms, including PID, P, PI, PD, or on/off, with autotuning capabilities. The dual digital display provides real-time process temperature and setup parameters, making it ideal for heating, cooling, or alarm control in industrial environments.
OMEGA CN8501TCR1 Digital Temperature Controller Specifications:
- Accuracy: +0.2% of full scale
- Setpoint Resolution: 1 count/0.1 count
- Input Types: Thermocouple, RTD, Voltage, Current
- Thermocouple Range: -129 to 316°C (-200 to 600°F)
- RTD Range: -200 to 850°C (-328 to 1562°F)
- Display: Dual 4-digit LED, orange and green
- Dimensions: 53 H x 53 W x 18.3 mm, bezel size 2.1x2.1x0.72 inches
- Front Panel Rating: NEMA 4X (IP65)
- Power Supply: 103-253 Vac, 103-330 Vdc, optional 24 Vdc/Vac
- Outputs: Dual relay (5A @ 120 Vac, 3A @ 240 Vac), 4-20 mA, 0-5 V, 0-10 V options
- Control Algorithms: P, PI, PD, PID, on/off
- Response Time: 0.1, 1.0, or 10s
- Communication: Optional RS232 or RS485
Buy the Brand Name CN8501TCR1 – Reliable Temperature Controller for Industrial Applications
Order the Digital Temperature Controller online today and benefit from advanced features like dual display, PID control, autotuning, and NEMA 4X/IP65 protection. Its universal power supply, multiple input options, and flexible outputs make it suitable for a wide range of industrial heating, cooling, and alarm applications. Experience seamless operation and reliable temperature management with this high-performance device. Purchase now to enhance your process control systems efficiently and effortlessly.
Buy Brand Name CN8501TCR1 now and enjoy precise temperature regulation, robust construction, and versatile control features for industrial processes.
Frequently Asked Questions
Where can I buy OMEGA CN8501TCR1?
You can click on the BUY or RFQ button to purchase CN8501TCR1 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN8501TCR1?
You can download the CN8501TCR1 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN8501TCR1?
OMEGA
