OMEGA HTMG1CU618SC100 High-Temperature Heater Wire

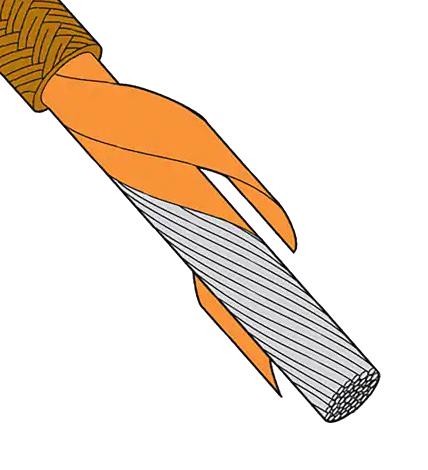

The HTMG series high-temperature heater hook-up wire features stranded, nickel-coated copper conductors rated for up to 450°C (842°F). Designed for industrial and appliance heating applications, it includes treated glass braid insulation and mica tape for exceptional thermal resistance. Certified by CSA, UL, and NRTL standards, it is available in various gauges and lengths, suitable for heat treating furnaces, kilns, and heaters. Its robust construction ensures reliable performance at high temperatures with flexible, easy-to-install wiring options for challenging environments.
OMEGA HTMG1CU618SC100 High-Temperature Heater Wire Specifications:
- Conductor Material: Nickel-Coated Copper
- Conductor Temperature Rating: 450°C (842°F)
- Insulation: Treated Glass Braid with Mica Tape
- Certifications: CSA Certified, UL Listed, NRTL
- Gauge Options: 8, 10, 12, 14, 16, 18, 20, 22
- Voltage Ratings: 300V, 600V
- Standard Color: Natural (tan)
- Approximate Weight per 300 meters: 31.8 kg (70.0 lbs) for 8 gauge, 12.2 kg (27.0 lbs) for 12 gauge, varies by size
- Nominal Outer Diameter: 2.0 mm (0.08 in) for 22 gage, up to 6.1 mm (0.26 in) for 8 gage
- Available Lengths: 50 to 499+ feet, sold by the foot, suitable for industrial heat applications
Buy the Buy OMEGA HTMG Series Heater Hook-Up Wire Part Number HTMG1CU618SC Online
Get your high-temperature heater wiring from OMEGA's HTMG series today. These conductor wires feature nickel-coated copper, rated up to 450°C, with mica and glass braid insulation for durability and safety. Ideal for heat treating furnaces, kilns, and industrial appliances, they are CSA and UL certified, available in a range of gauges and lengths. Easy to install, flexible, and designed for demanding high-temperature environments, our heater wire ensures optimal performance and safety for your equipment and projects.
Order your OMEGA Series HTMG-1CU-618S/C high-temperature heater wire today and ensure reliable, high-performance wiring for your industrial heating projects.
Frequently Asked Questions
Where can I buy OMEGA HTMG1CU618SC100?
You can click on the BUY or RFQ button to purchase HTMG1CU618SC100 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HTMG1CU618SC100?
You can download the HTMG1CU618SC100 datasheet or visit the OMEGA website for support.
Who is the manufacturer of HTMG1CU618SC100?
OMEGA
