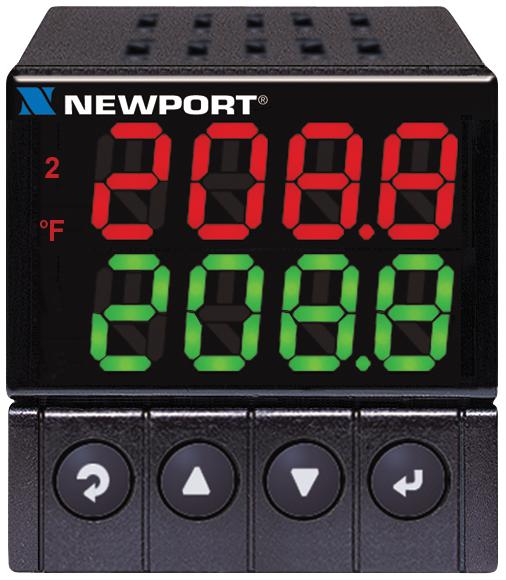

OMEGA CNI16D33C24DC Temperature Process Controller
The CNi16 series temperature and process controllers offer high accuracy with 0.5°C and 0.03% reading resolution, featuring programmable digital filters, user-friendly color displays, and various input options such as thermocouple, RTD, voltage, and current. They support Ethernet connectivity with an embedded web server, serial communications (RS232 and RS485), and optional built-in excitation, control outputs, and analog retransmission. Designed for industrial environments, these DIN size controllers are ideal for precise temperature, strain, and process control applications with NEMA 4/IP65 front bezel, and adjustable control modes including PID, manual, and auto-tuning.
OMEGA CNI16D33C24DC Temperature Process Controller Specifications:
- Display: 4-digit 9-segment LED with programmable color, dual or single display options
- Accuracy: ±0.5°C, 0.03% reading resolution
- Input Types: Thermocouple, RTD, voltage (0-100 mV, 0-10 V), current (0-20 mA), strain gages
- RTD Compatibility: 100/500/1000 ohm, 2-, 3-, 4-wire, ±0.00385 or 0.00392 curve
- Temperature Stability: RTD 0.04°C/°C, TC 0.05°C/°C at 25°C
- Analog Outputs: 0-10 Vdc or 0-20 mA, optional isolated retransmission
- Control Modes: PID, manual, auto-tune, ramp/soak, auto reset, anti-reset windup
- Outputs: Relay (3 A resistive), SSR (0.05-0.5 A), DC pulse, analog voltage/current
- Communication: Ethernet (IEEE 802.3), TCP/IP, HTTP, RS232/RS485/RS422, MODBUS
- Power Supply: 90-240 Vac +10%, or 24 Vac (low voltage option)
- Protection: NEMA 4 (IP65) front bezel, isolated power-to-input/output (2300 Vac)
- Environmental: Operating temperature 0-55°C, humidity 90% RH non-condensing
- Dimensions: 48x96x127 mm for most series, with appropriate panel cutouts
Buy the Omega CNi16 Series – Reliable Temperature and Process Controllers for Industrial Applications
Enhance your industrial temperature and process control systems with the Omega CNi16 series controllers. Featuring high accuracy, multiple input options, Ethernet connectivity, and programmable control modes, these controllers are engineered for reliability and ease of operation. They support DIN mounting, have NEMA 4/IP65 front bezels, and offer versatile outputs including relays, SSR, and analog retransmission. Whether for temperature, strain, or process monitoring, these controllers provide exceptional performance, simplifying setup and maintenance while delivering precise, real-time data to optimize your industrial processes.
Order your Omega CNi16 series temperature controller today and ensure precise, reliable temperature management for your industrial projects.
Frequently Asked Questions
Where can I buy OMEGA CNI16D33C24DC?
You can click on the BUY or RFQ button to purchase CNI16D33C24DC from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CNI16D33C24DC?
You can download the CNI16D33C24DC datasheet or visit the OMEGA website for support.
Who is the manufacturer of CNI16D33C24DC?
OMEGA
