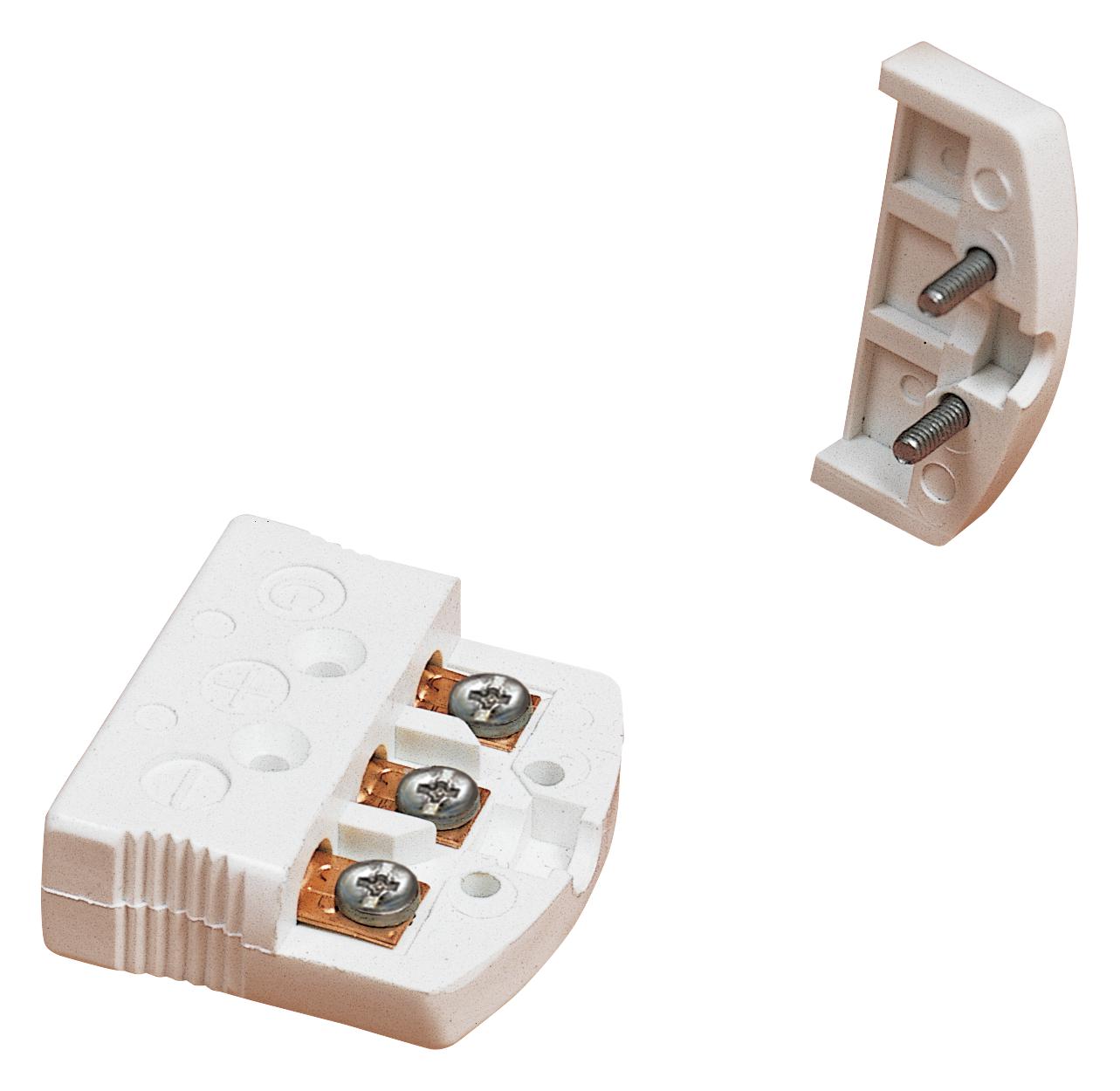

OMEGA OTPUF Heavy Duty Thermocouple Connector
The OTPUF series are heavy-duty, 3-prong connectors designed for secure electrical connections in industrial environments. Constructed from glass-filled nylon, these connectors are rated from -29°C to 180°C (–20°F to 356°F) and tolerate over 5000 flexing cycles. Compatible with stranded or solid wire up to 14 AWG, they feature color-coding for ANSI or IEC standards and accept shielded thermocouples, thermistors, and RTDs. The male and female components have copper connection pins, with the female body matching the male size, ensuring reliable and durable performance in demanding applications.
OMEGA OTPUF Heavy Duty Thermocouple Connector Specifications:
- Material: Glass-filled nylon
- Temperature Rating: -29°C to 180°C (-20°F to 356°F)
- Wire Compatibility: Up to 14 AWG stranded or solid wire
- Connector Type: Male (plug) and female (jack)
- Impact Resistance: High-impact construction with color-coded ANSI or IEC standards
- Connection Pins: Copper, slightly larger for secure connection
- Number of Prongs: 3-prong
- Cable Clamp: Optional PCLM available for secure wiring
- Rated Cycles: Over 5000 flexing cycles for durability
- Dimensions: 112 mm (4.4 inches) length, same size for male and female bodies
Buy the OTP Series Heavy Duty Connectors: OTPUF
Purchase OTPUF heavy-duty thermocouple connectors online today to ensure secure, durable, and reliable electrical connections for industrial temperature measurement systems. These connectors are designed with high-impact materials, rated from -29°C to 180°C, and accept stranded or solid wire up to 14 AWG. Featuring copper connection pins, color coding for ANSI or IEC standards, and optional cable clamps, they provide long-lasting performance. Perfect for thermocouples, thermistors, and RTDs in demanding applications, these connectors deliver precise and consistent electrical connections for your industrial requirements.
Get OTPUF heavy-duty 3-prong connectors today—built for precision, durability, and reliable thermocouple connections in industrial environments.
