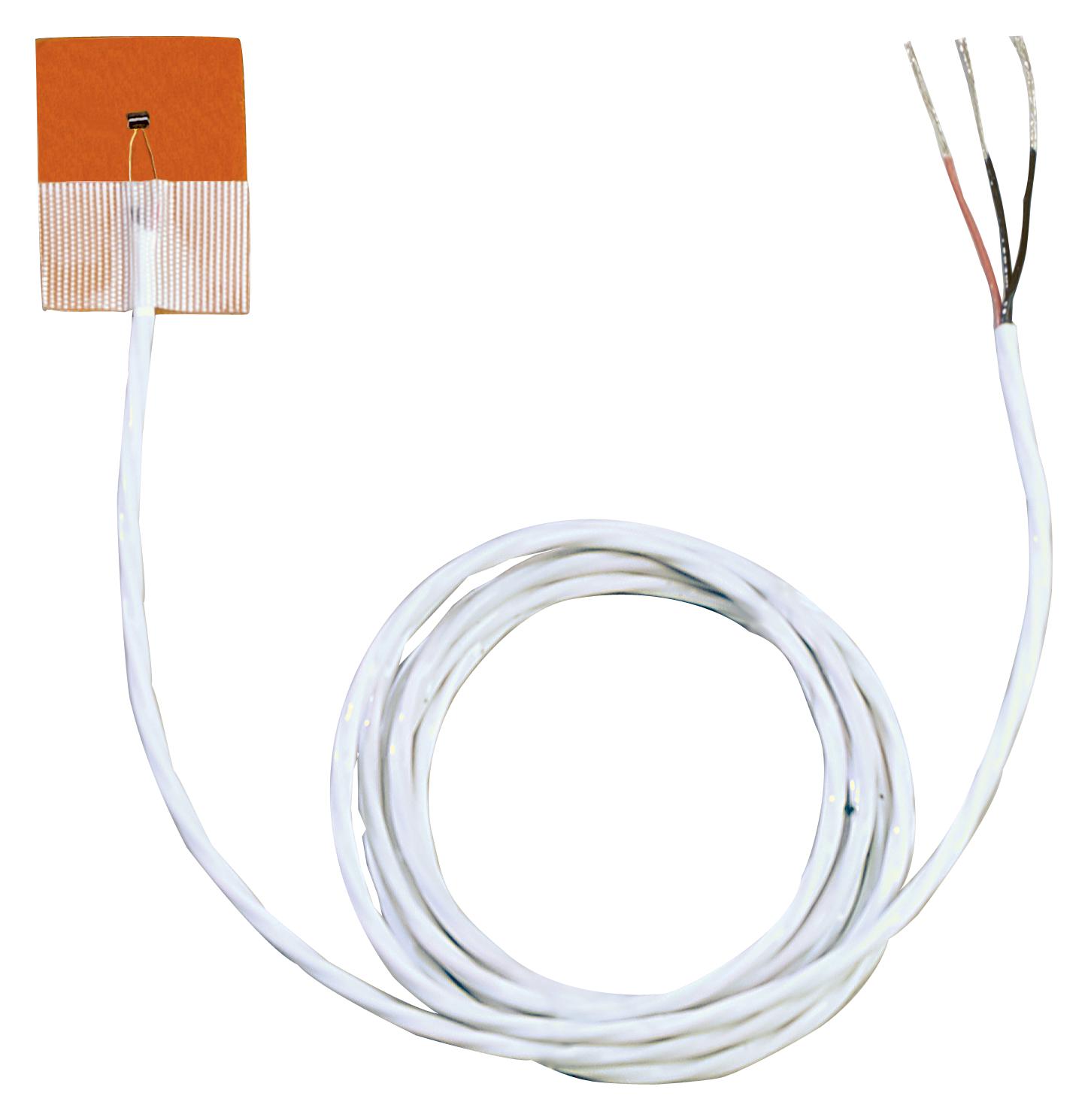

OMEGA SA1RTD4W Surface-Mount RTD Sensor
The SA1-RTD surface-mount RTD sensor provides Class A accuracy for precise temperature monitoring on flat or curved surfaces. With a thin-film platinum sensing element rated at 100 Q at 0°C and a temperature coefficient of 0.00385 2/Q/°C, it ensures stable, accurate readings. Easy to apply using self-adhesive backing or permanent mounting with OMEGABOND® cements, it operates continuously up to 260°C and short-term at 290°C. Its flexible wiring options include 3- or 4-wire configurations with options for external connectors, making it ideal for electronics, industrial, and environmental applications.
OMEGA SA1RTD4W Surface-Mount RTD Sensor Specifications:
- Temperature Range: -73°C to 260°C continuous, 290°C short-term
- Sensing Element Resistance: 100 Q at 0°C
- Temperature Coefficient: 0.00385 2/Q/°C
- Accuracy: +0.06Q at 0°C (DIN Class A)
- Drift: Less than 0.2°C per year
- Response Time: Less than 0.9 s (water immersion), less than 2 s on hot plate
- Self-Heating: 2.5 mW/°C
- Lead Wires: 1 m (40”), 26 AWG stranded nickel-plated copper, PFA-insulated
- Construction: Thin-film platinum element, self-adhesive carrier, customizable wire length
- Mounting: Self-adhesive or permanent via OMEGABOND® cements
- Protection: Optional stainless steel overbraid for noise immunity
- Standards: IEC 751 Class A, BS EN60751 1996
Buy the OMEGA SeriesSA1-RTD Surface-Mount RTD Sensor: SA1RTD4W
Upgrade your temperature measurement system with this reliable surface-mount platinum RTD sensor offering Class A accuracy. Easy to install with self-adhesive backing or OMEGABOND® cements, it provides stable readings up to 260°C and short-term at 290°C. Ideal for electronics, machinery, and environmental control, it features flexible wiring options and optional stainless steel overbraid for noise immunity. Purchase online today to enhance your process control with a high-quality, durable sensor designed for demanding industrial environments.
Order your OMEGA SeriesSA1-RTD surface-mount temperature sensor today and ensure precise, reliable temperature monitoring for your critical processes.
