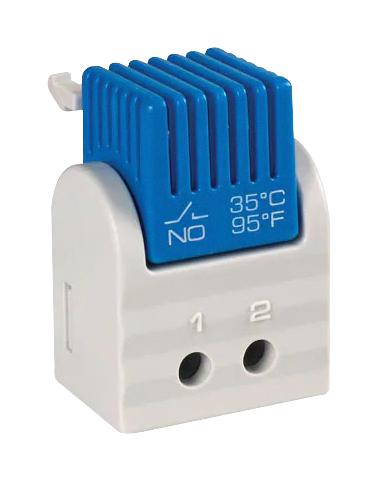

OMEGA FT01161002 Fixed Point Thermostat
The tamperproof thermostat series FTO11 and FTDO11 offers reliable, fixed setpoint temperature control with compact, DIN rail mountable design. These thermostats feature dual models with Normally Closed (NC) and Normally Open (NO) contacts, suitable for industrial applications requiring precise temperature regulation. Constructed with thermic bi-metal sensors, they provide high service life exceeding 100,000 cycles and support resistive and inductive loads up to 5 A at 240 Vac. Their plastic housings are UL94V-0 rated, and operating temperature ranges from -40°C to 70°C, making them durable and safe for various environments.
OMEGA FT01161002 Fixed Point Thermostat Specifications:
- Sensor Element: Thermostatic bi-metal
- Maximum Tolerance: +5.4°F (3K)
- Contact Resistance: <20 mQ
- Service Life: >100,000 cycles
- Service Life: 5 A resistive/1.6 A inductive at 240 Vac; DC 30 W
- Minimum Load: 20 mA (all voltages)
- Connections: 2-pole terminal for AWG 14 max; 4-pole terminal for dual models
- Mounting: Clip for 35 mm DIN rail (EN 50022)
- Dimensions: 47 mm H x 33 mm W x 33 mm D (1.85 x 1.3 x 1.3 inches)
- Housing: Plastic, UL94V-0
- Weight: 23 g (0.8 oz), dual 40 g
- Protection Type: NEMA 2 (P20)
- Operating Temperature: -40°C to 70°C
- Storage Temperature: -45°C to 80°C
Buy the Adis FT01161002 – Reliable Temperature Control for Industrial Applications
Enhance your industrial temperature control with the Adis Fixed Point Thermostat. Featuring dual NC and NO models, compact DIN rail mounting, and a robust plastic housing, this thermostat provides dependable operation across wide temperature ranges. With a high service cycle life exceeding 100,000 cycles and support for resistive and inductive loads of up to 5 A at 240 Vac, it is suitable for HVAC, manufacturing, and automation applications. Easy to install, UL94V-0 rated, and designed for durability and safety—purchase online today for reliable performance.
Order your Adis Series FT01161002 dual thermostat today and ensure precise, tamperproof temperature regulation for your industrial needs.
