OMEGA DHT051020LD High Temperature Heating Tape
The DHT series consists of high-temperature, flexible dual element heating tapes designed for wrapping and heating laboratory glassware such as flasks, beakers, and distillation apparatus. Made with multi-stranded, fiberglass-reinforced elements, these tapes provide even heat distribution with a maximum temperature of 760°C (1400°F). Available in various sizes and wattages, they connect easily to standard 120 or 240 Vac power supplies via built-in prong or bare wire connections, making them versatile for different laboratory heating applications.
OMEGA DHT051020LD High Temperature Heating Tape Specifications:
- Power Density: 13.1 watts/in² (0.020 watts/mm²)
- Maximum Temperature: 760°C (1400°F)
- Power Leads: 610 mm (24") with 2-prong plug or bare wire
- Voltage: 120 Vac or 240 Vac options
- Construction: Multi-stranded, fiberglass reinforced elements
- Sizes: Ranging from 13 mm to 25.4 mm width, lengths from 0.61 m to 3.66 m
- Wattage: 120 to 943 watts depending on model

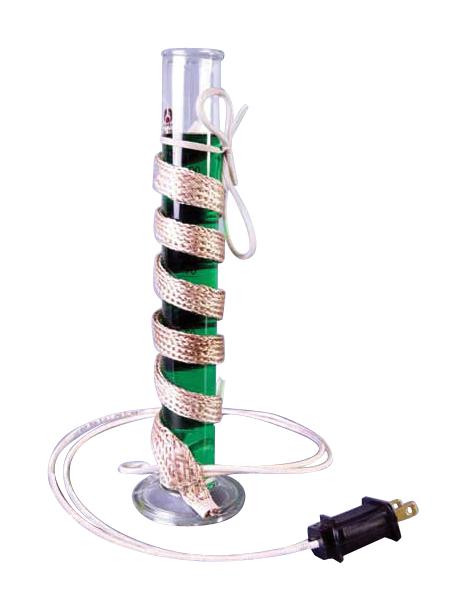

- Application: Wrap around laboratory glassware including cylinders, flasks, beakers, distillers, and tubing
- Includes: Operator's manual and tie-downs for installation
- Connects easily to standard power supplies, suitable for precise temperature control
Buy the Buy Omega DHT Series High Temperature Dual Element Heating Tape Part Number DHT051020LD Online
Enhance your laboratory heating solutions with the Omega High Temperature Dual Element Heating Tape. Designed for wrapping laboratory glassware, these tapes provide consistent heat distribution up to 760°C (1400°F). Available in various sizes with easy connection to 120 or 240 Vac power supplies, they are durable and fiberglass reinforced for added strength. Easy to install with included tie-downs, they deliver precise temperature control for distillation, chemical reactions, and research activities. Purchase online now for reliable laboratory heating performance.
Order your Omega DHT Series DHT051020LD high temperature dual element heating tape today and ensure reliable, uniform heat for laboratory glassware.
