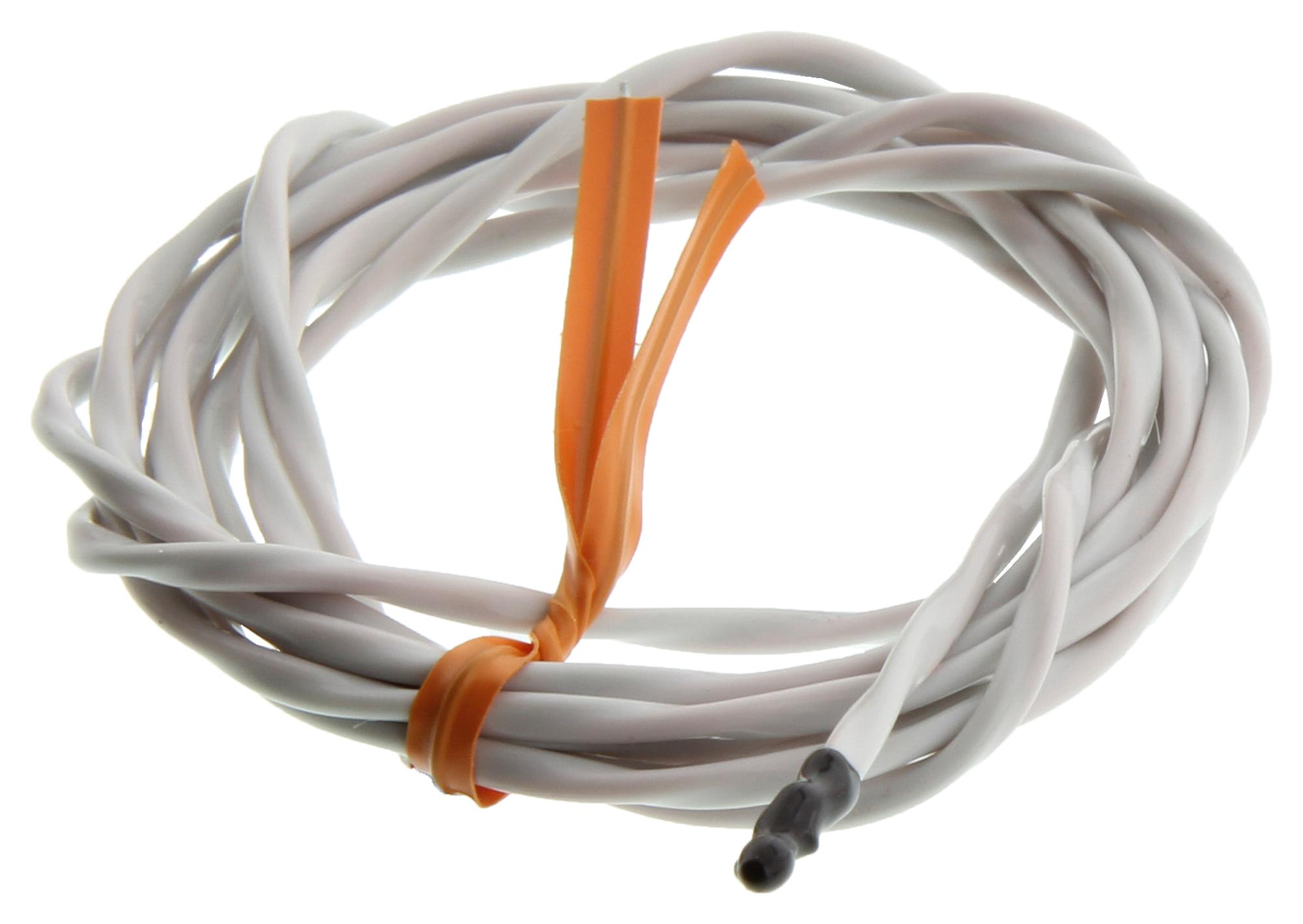

OMEGA TH4403140T Thermistor Sensor
The TH-44000 Series Fast Response Thermistor Sensors feature an exposed element with lead wires, designed for quick temperature measurements within -80 to 120°C (-110 to 250°F). They have a 1-second response time, high interchangeability of +0.2°C (optional +0.1°C), and are suitable for direct immersion into liquids. The sensors have PFA-insulated, stranded leads and jacketed cable with optional phone plugs, making them ideal for precise temperature monitoring in industrial and scientific applications. Models vary in resistance, stability, and cable length, providing versatile options for demanding environments.
OMEGA TH4403140T Thermistor Sensor Specifications:
- Response Time: 1 second maximum
- Operating Range: -80°C to 120°C (-110°F to 250°F)
- Resistance Range: 2252 Q to 30000 Q at 25°C
- Interchangeability: +0.2°C (standard), +0.1°C (optional)
- Cable Length: 1 meter (40 inches), optional longer lengths available
- Insulation: PFA-insulated stranded leads with jacketed cable
- Response Time: Fast response within 1 second
- Temperature Stability: +0.2°C to +0.1°C depending on model
- Temperature Range: -80°C to 120°C with optional limit up to 75°C
- Design: Exposed bead with lead wires for direct immersion and precise sensing
Buy the Buy Omega Thermistor Sensors Part Number TH4403140T Online
Discover the reliable Omega Thermistor Sensor series, designed for fast response and high precision temperature measurement. These sensors feature exposed elements with PFA-insulated leads, suitable for direct liquid immersion. Models offer resistance options from 2252 Q to 30000 Q at 25°C, with interchangeability of +0.2°C (standard) and optional +0.1°C. Operating within -80°C to 120°C, they provide accurate readings in demanding industrial environments. Purchase online today for quick delivery and superior performance in temperature sensing applications.
Get Omega thermistor sensors with fast response and reliable temperature accuracy today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy OMEGA TH4403140T?
You can click on the BUY or RFQ button to purchase TH4403140T from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part TH4403140T?
You can download the TH4403140T datasheet or visit the OMEGA website for support.
Who is the manufacturer of TH4403140T?
OMEGA
