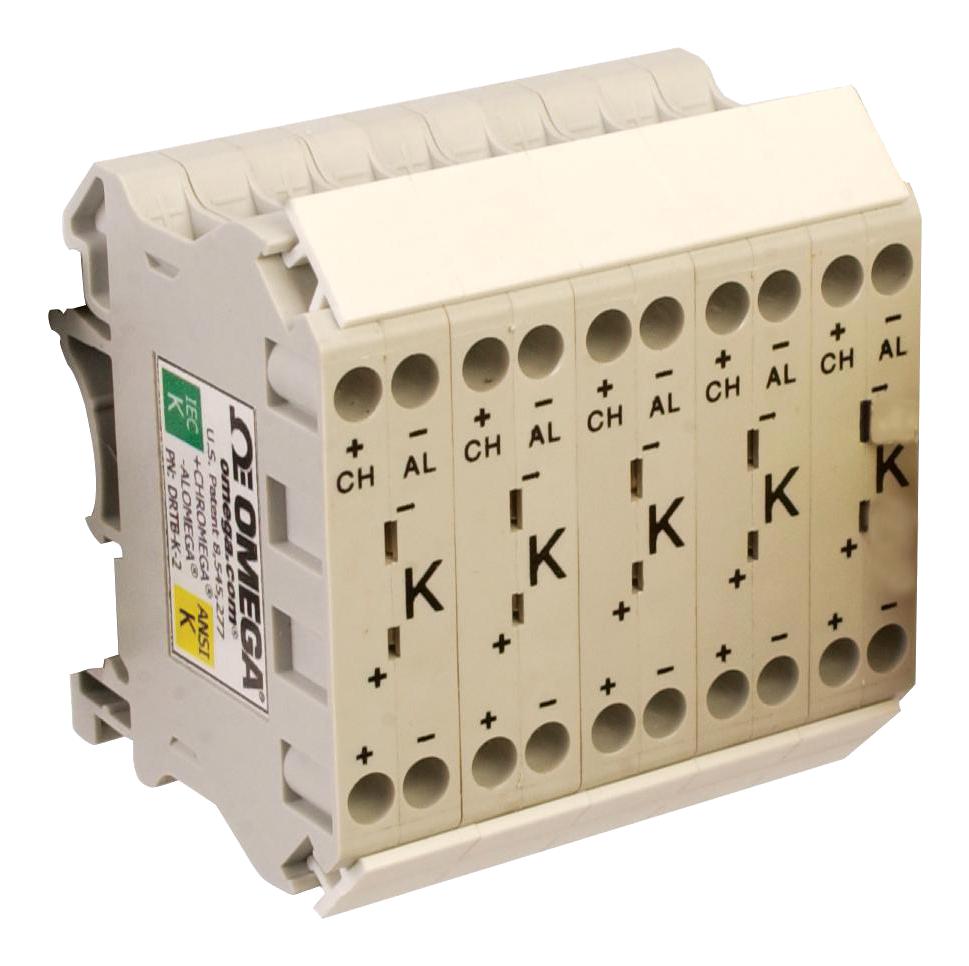

OMEGA DRTBK2 Thermocouple Terminal Blocks
The DRTB-2 Series thermocouple terminal blocks provide secure, maintenance-free connections for type K, J, T, E, N, R/S, and U calibrations. Constructed with thermocouple-grade alloys and housed in UL 94 VO-rated polyamide 6.6 plastic, these fully enclosed, DIN rail-mountable terminals include built-in miniature female connectors for easy troubleshooting and calibration verification. With stainless steel captive screws, tin-plated brass wire clamps, and a narrow 10.7 mm width, they ensure vibration resistance, corrosion resistance, and reliable performance in industrial environments, supporting wire gauges from 14-24 solid and stranded wires.
OMEGA DRTBK2 Thermocouple Terminal Blocks Specifications:
- Width: 10.7 mm (0.422")
- Length: 52.8 mm (2.08")
- Height: 42.3 mm (1.666")
- Installation Height: 35 x 7.5 mm / 35 x 15 mm DIN Rail: 43.5 mm (1.713") / 52.8 mm (2.08")
- Wire Gauge Range: 14-24 solid and stranded wire
- Wire Strip Length: 8 mm (0.31")
- Temperature Rating: -40 to 85°C (-40 to 185°F)
- Housing Material: UL 94 VO-rated polyamide 6.6
- Screws: Stainless steel captive
- Wire Clamps: Tin-plated brass
- Supported Calibrations: K, J, T, E, N, R/S, U
- Connector Type: Miniature female thermocouple receptacle
- Uses Industry Standard Marker Strips
- DIN Rail Compatibility: 35 mm and G-type rails
- Maximum Torque: 0.4 Nm (3.54 in-lb +10%)
Buy the Reckon DRTB-2 Reliable Thermocouple Terminal Blocks for Industrial Applications
Enhance your industrial temperature measurement with the reliable DRTB-2 Series thermocouple terminal blocks. Designed for secure DIN rail mounting, these blocks feature built-in miniature connectors compatible with industry-standard thermocouple calibrations such as K, J, T, and E. Made from UL 94 VO-rated polyamide, they offer excellent vibration, corrosion resistance, and maintenance-free operation. With stainless steel captive screws and tin-plated brass wire clamps, they provide safe, precise connections for solid or stranded wires ranging from 14 to 24 AWG, ensuring long-lasting performance in demanding environments.
Order your Reckon DRTB-2 Series thermocouple terminal blocks today and ensure secure, accurate, and maintenance-free connections for your industrial temperature measuring needs.
