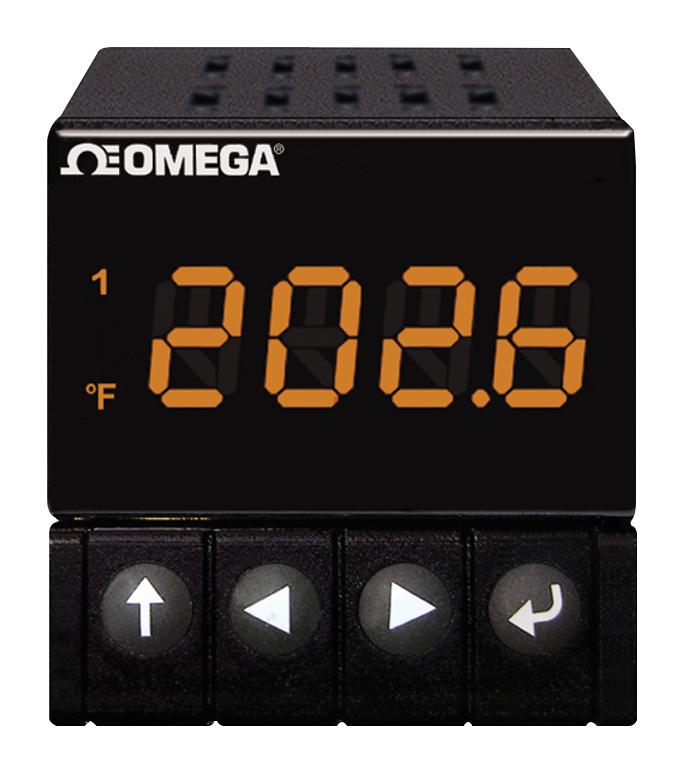

OMEGA DP16PT330EIP Digital Panel Meter
OMEGA's PLATINUM Series digital panel meters provide unparalleled flexibility in process measurement. These microprocessor-based meters are designed for ease of setup and use, featuring automatic hardware configuration recognition and a simplified menu flow. They support a wide range of input types, including thermocouples, RTDs, thermistors, DC voltage, DC current, and strain, with selectable decimal points for versatile engineering unit scaling. The meters also offer flexible alarm programming, remote latch reset functionality, and optional mechanical relays for alarms and isolated analog output. With optional embedded ethernet and serial communications, these meters are ideal for industrial applications requiring data acquisition and remote control.
OMEGA DP16PT330EIP Digital Panel Meter Specifications:
- Input Types: Thermocouple, RTD, thermistor, analog voltage, analog current, strain
- Current Input: 4 to 20 mA, 0 to 24 mA scalable
- Voltage Input: -100 to 100 mV, -1 to 1 V, -10 to 10 Vdc scalable
- Thermocouple Input (ITS 90): K, J, T, E, R, S, B, C, N
- RTD Input (ITS 90): 100/500/1000 Ω Pt sensor, 3- or 4-wire; 385, 392, or 3916 curves
- Thermistor Input: 2252 Ω, 5K Ω, 10K Ω
- Strain Input: ±50 mV, ±100 mV
- Resolution: 0.1° temperature; 10 µV process
- A/D Conversion: 24-bit sigma delta
- Reading Rate: 20 samples per second
- Digital Filter: Programmable from 0.05 seconds to 6.4 seconds
- CMRR: 120 dB
- Excitation: Firmware selectable (5, 10, 12, and 24 Vdc @ 25 mA)
- Alarm Outputs (optional): SPDT Relay, Isolated Analog
- USB: Female micro-USB
- Ethernet: Standard RJ45
- Serial: Screw terminals
- Protocols: Omega ASCII, Modbus[®] ASCII/RTU
- Dimensions (DP16Pt Series): 48 H x 48 W x 127 mm D (1.89 x 1.89 x 5")
- Power: 90 to 240 Vac ±10%, 50 to 400 Hz, 110 to 375 Vdc
- Max Power Consumption: 4 W
