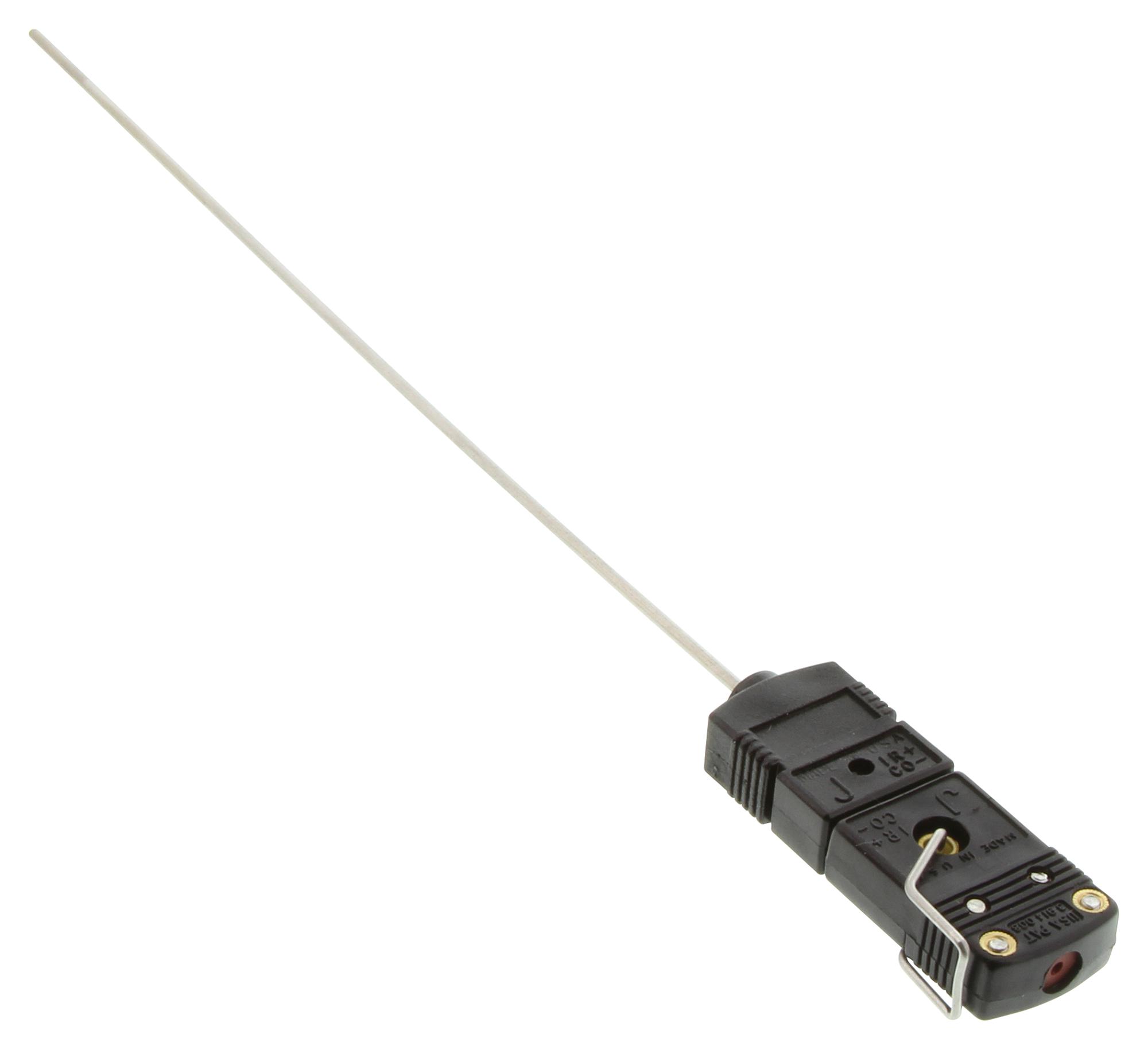

OMEGA JMQSS062U6 Miniature Thermocouple
The product is a quick disconnect thermocouple with miniature connectors suitable for various industrial temperature measurement applications. It features a glass filled nylon connector body, rated to 220°C (425°F), and is compatible with different sheath materials such as 304, 310, 316, 321 stainless steels, Inconel, or Super OMEGACLAD XL. The thermocouples are available in standard 6 and 12-inch lengths with sheath diameters from 0.010 to 0.125 inches. They offer grounded, ungrounded, or exposed junction options, with free mating connectors, cable clamps, and locking clips included. Custom lengths and configurations are also available.
OMEGA JMQSS062U6 Miniature Thermocouple Specifications:
- Connector Body Material: Glass Filled Nylon
- Rated Temperature: 220°C (425°F)
- Sheath Materials: 304, 310, 316, 321 stainless steels, Inconel, Super OMEGACLAD XL
- Sheath Diameters: from 0.010 to 0.125 inches
- Lengths Available: 6 and 12 inches
- Junction Types: Grounded, Ungrounded, Exposed
- Included Accessories: Mating connector, cable clamp, locking clip
- Probe Diameter: less than 0.032 inches for removable connector, larger probes molded with connector
- Connections: Miniature quick-disconnect style
- Temperature Rating: Up to 220°C
- Available with various thermocouple types such as J, K, T, E, and N
- Custom lengths and configurations available upon request
Buy the Buy Omega Thermocouple Part Number JMQSS062U6 Online
Purchase the Omega miniature thermocouple JMQSS062U6 online for precise temperature measurement in industrial environments. Designed with a glass filled nylon connector body and available in various sheath materials including stainless steel, Inconel, and Super OMEGACLAD XL, this thermocouple offers excellent durability and temperature ratings up to 220°C. It features standard 6 or 12-inch lengths and options for grounded, ungrounded, or exposed junctions. Free accessories include mating connectors, cable clamps, and locking clips, making installation quick and straightforward.
Order your Omega Series JMQSS062U6 quick-disconnect thermocouple today and ensure reliable high-temperature measurements with flexible configurations.
Frequently Asked Questions
Where can I buy OMEGA JMQSS062U6?
You can click on the BUY or RFQ button to purchase JMQSS062U6 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part JMQSS062U6?
You can download the JMQSS062U6 datasheet or visit the OMEGA website for support.
Who is the manufacturer of JMQSS062U6?
OMEGA
