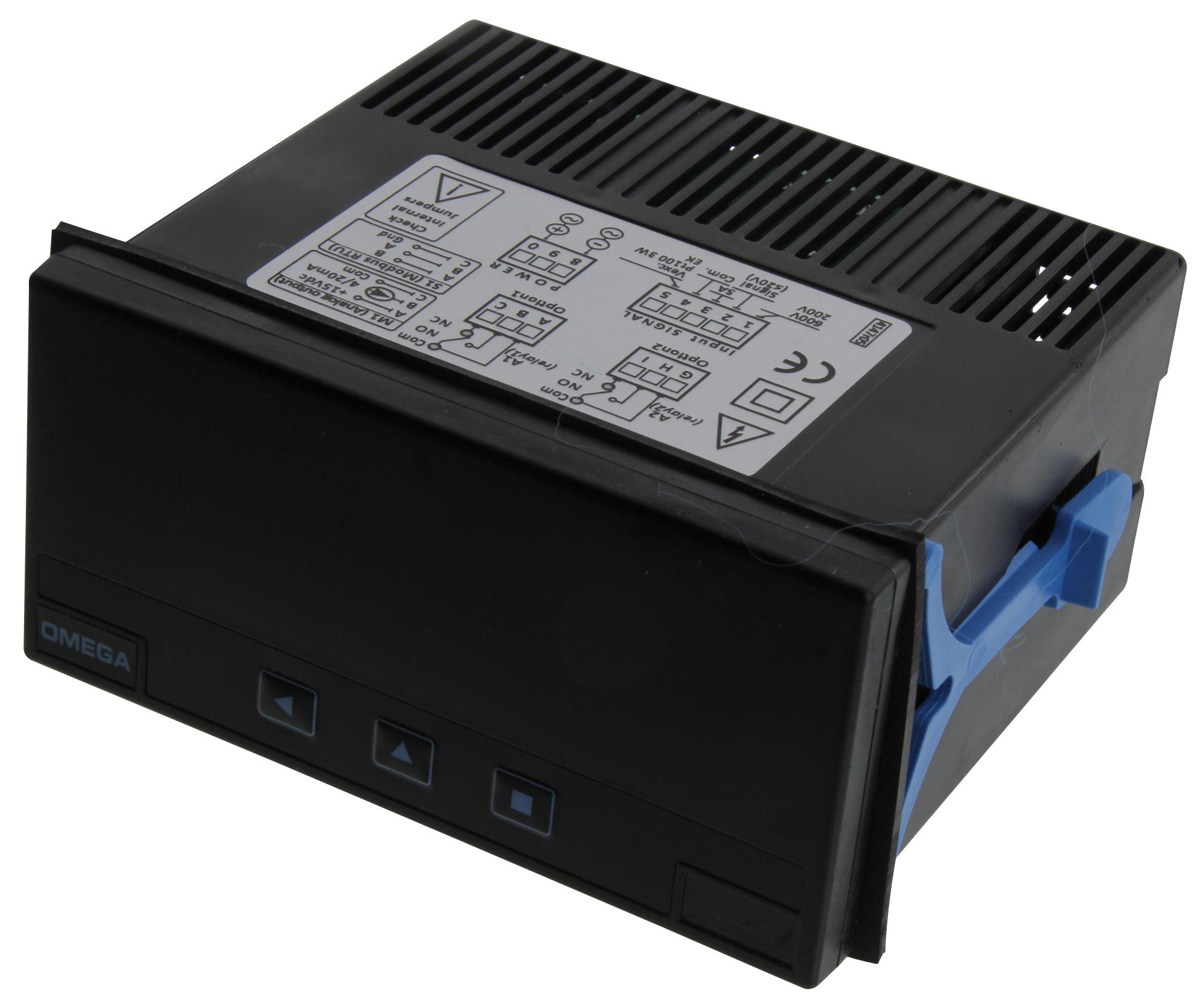

OMEGA DP20M1A2 Multisignal Panel Meter
OMEGA’s DP20-M1-A2 multisignal panel meter delivers high-performance measurement capabilities in a compact 1/8 DIN size, making it suitable for panel mounts and integration into a wide range of industrial applications. It accepts universal inputs, including thermocouple, RTD, process (mA & Vdc), resistance, frequency, and true RMS voltage and current. The meter's configuration flexibility allows it to function as an AC and DC voltmeter (up to 600 V) and an AC and DC ammeter (up to 5 A). Features like scaling, NEMA 4 (IP65) protection, programmable decimal points, and optional relays, analog output, and Modbus RTU serial communications enhance its functionality and control capabilities. Its universal power supply ensures global usability, while features like automatic, power-saving Eco Mode and password protection contribute to its operational efficiency and security.
OMEGA DP20M1A2 Multisignal Panel Meter Specifications:
- Digits: 4
- Reading: 9999 / -1999
- Decimal Point: Configurable
- LED Color: Red
- Digit Height: 14 mm (0.55")
- AC Voltages and AC Currents: 600 Vac, 200 Vac, 20 Vac, 2 Vac, 200 mVac, 60 mVac, 5 Aac, 20 mAac (True RMS measure)
- DC Voltages and DC Currents: ±600 Vdc, ±200 Vdc, ±20 Vdc, ±2 Vdc, ±200 mVdc, ±60 mVdc, ±5 Adc, ±20 mAdc
- Thermocouples: K, J, E, N, L, R, S, B, T and C (automatic cold junction compensation)
- Resistive ‘Pt’ Probes: Pt100 with 2 and 3 wires, Pt500, Pt1000
- Resistive ‘Ni’ Probes: Ni100, Ni200, Ni1000
- Resistive NTC Probes: See table at page 4
- Resistive PTC Probes: Families KTY-121, KTY-210 and KTY-220
- Process: 4/20 mA, 0/10 Vdc (+15 Vdc excitation voltage configurable at terminal 5)
- Resistances: Ranges 0/5 K and 0/50 K
- Potentiometers: With nominal values from 500 R up to 20 K
- Frequency: Up to 100 Hz (minimum 15 Hz)
- Thermal Drift Offset+Span: 150 ppm/ºC
- Readings: 3 readings/ second
- Response Time: <300 mSec. (0 % to 99 % of signal)
- Power 'U': 18 to 265 Vac/dc (isolated 1500 Veff @ 60 seconds)
- Output and Control Options: 1 or 2 Relays, 1 analog output 4/20 mA isolated, 1 Modbus RTU isolated serial output
- Protection: NEMA 4 (IP65)
- Consumption (Normal Mode): <1.0 W (meter only) <2.5 W (meter with options)
- Consumption (‘Eco’ Mode): <0.3 W (meter only) <1.5 W (meter with options)
- Connections: Plug-in screw terminals
- Weight: <150 g (5.3 oz)
- Operation Temperature: 0 to 50 ºC (32 to 122ºF)
